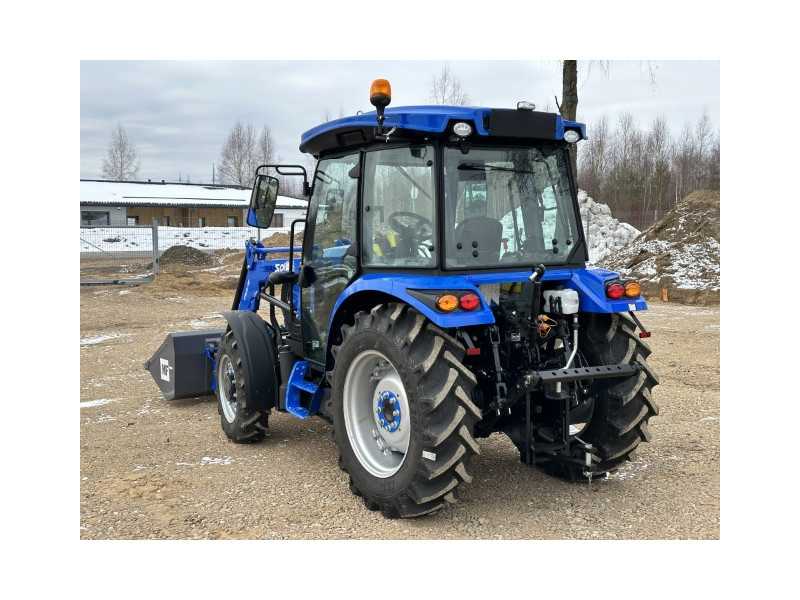

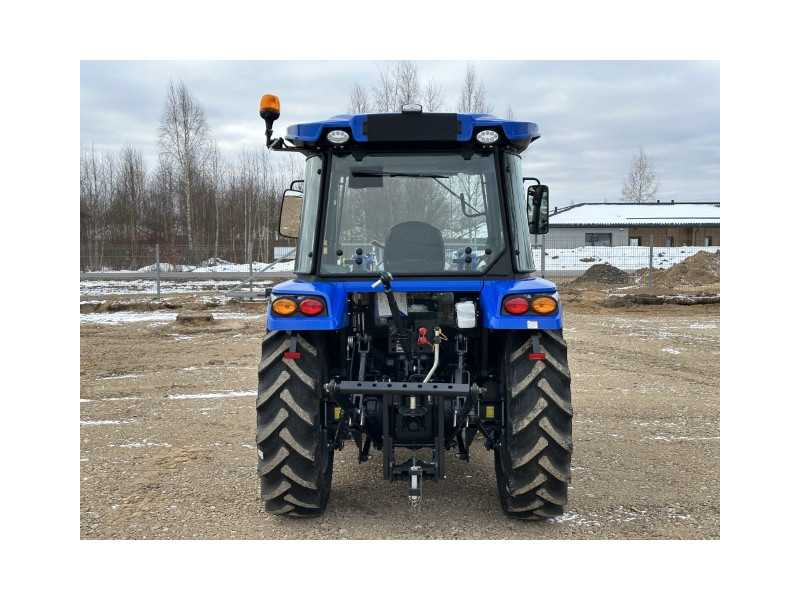

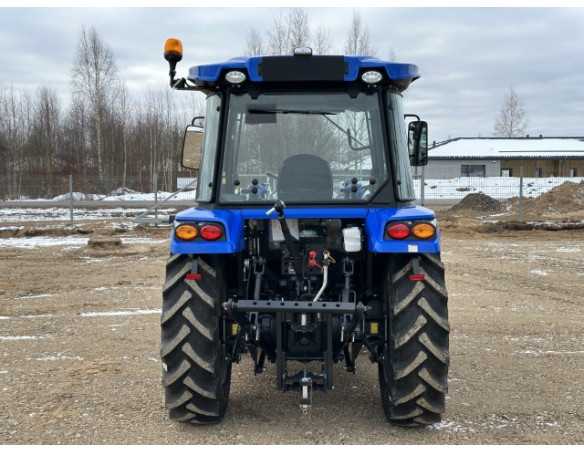

SOLIS 50

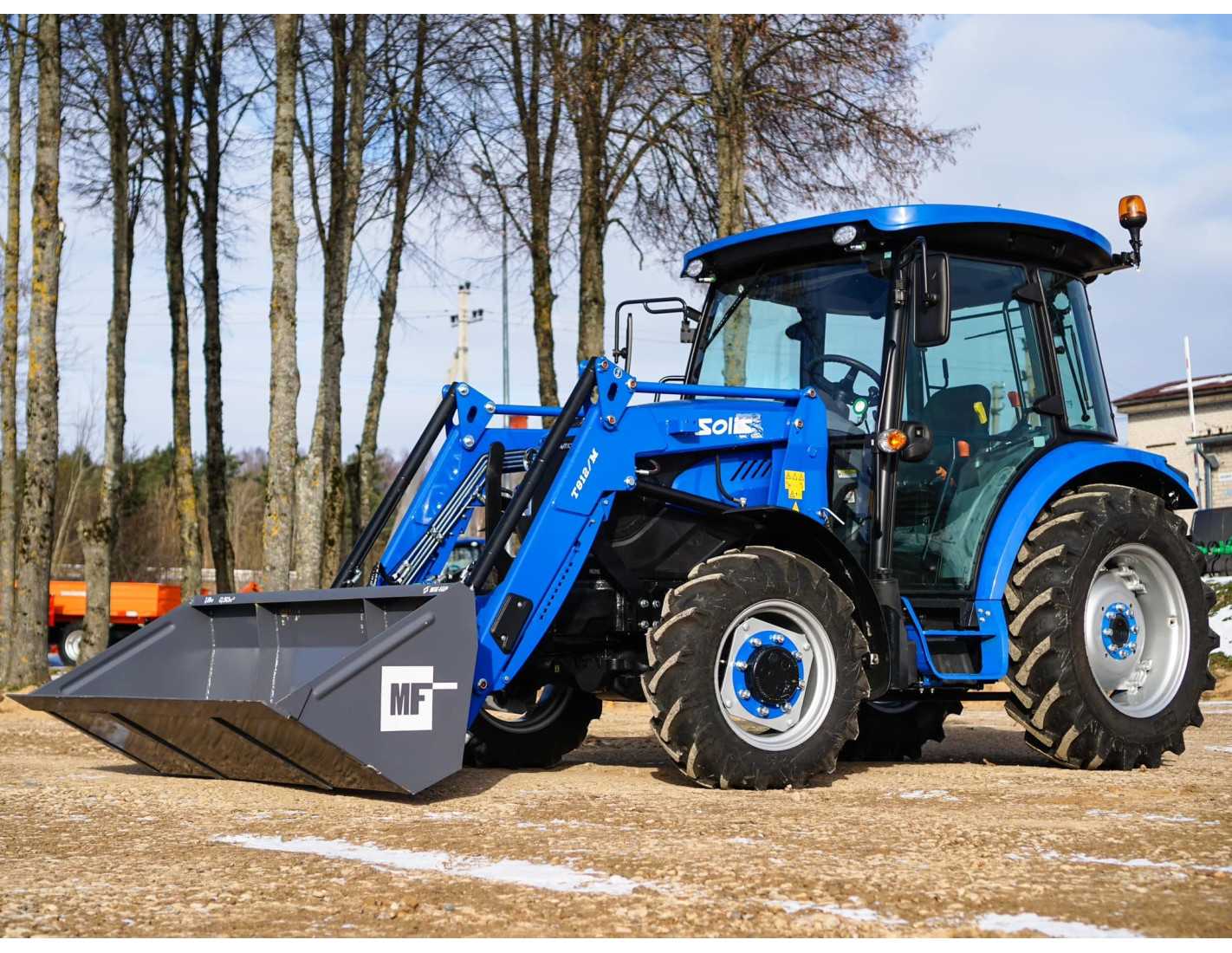

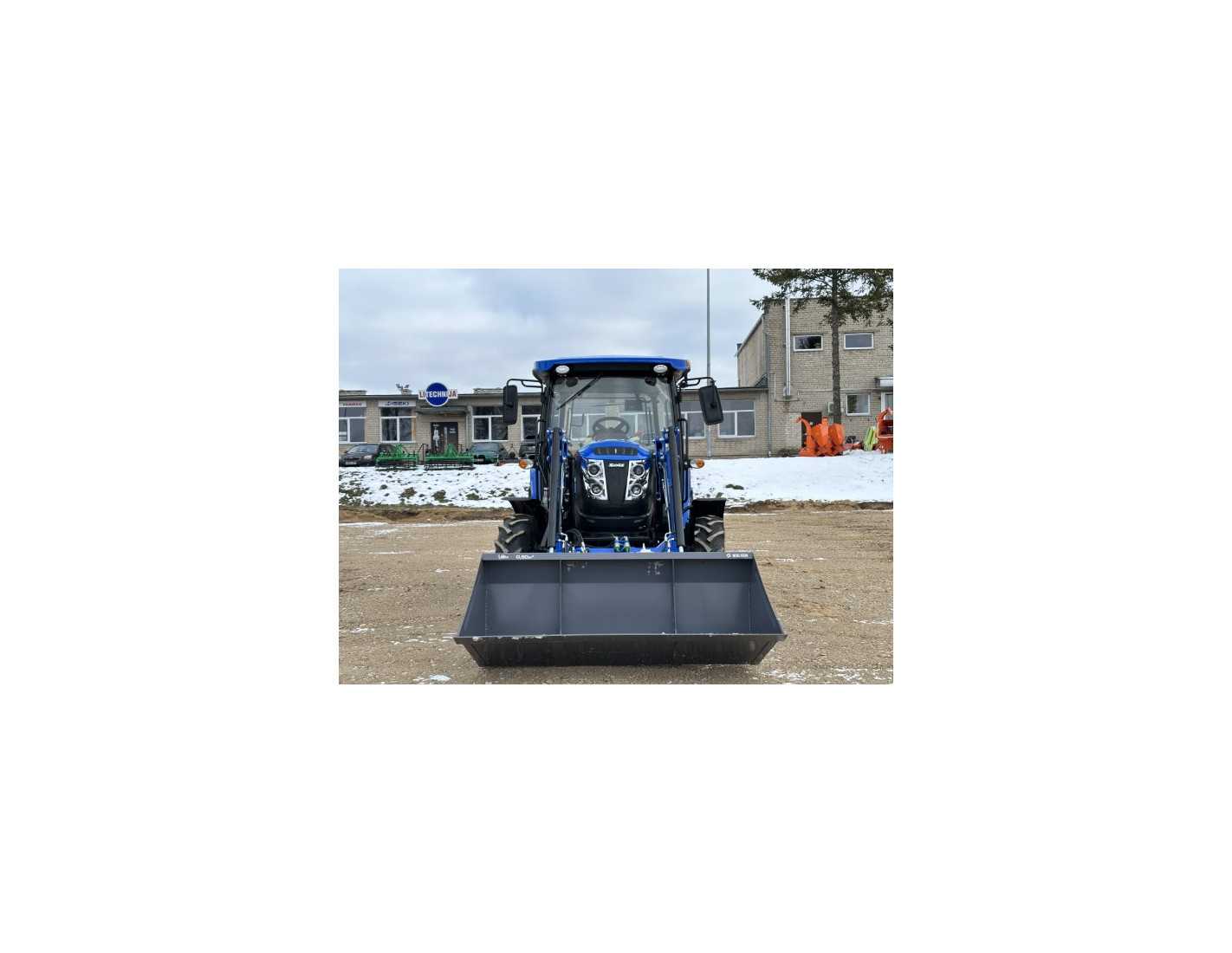

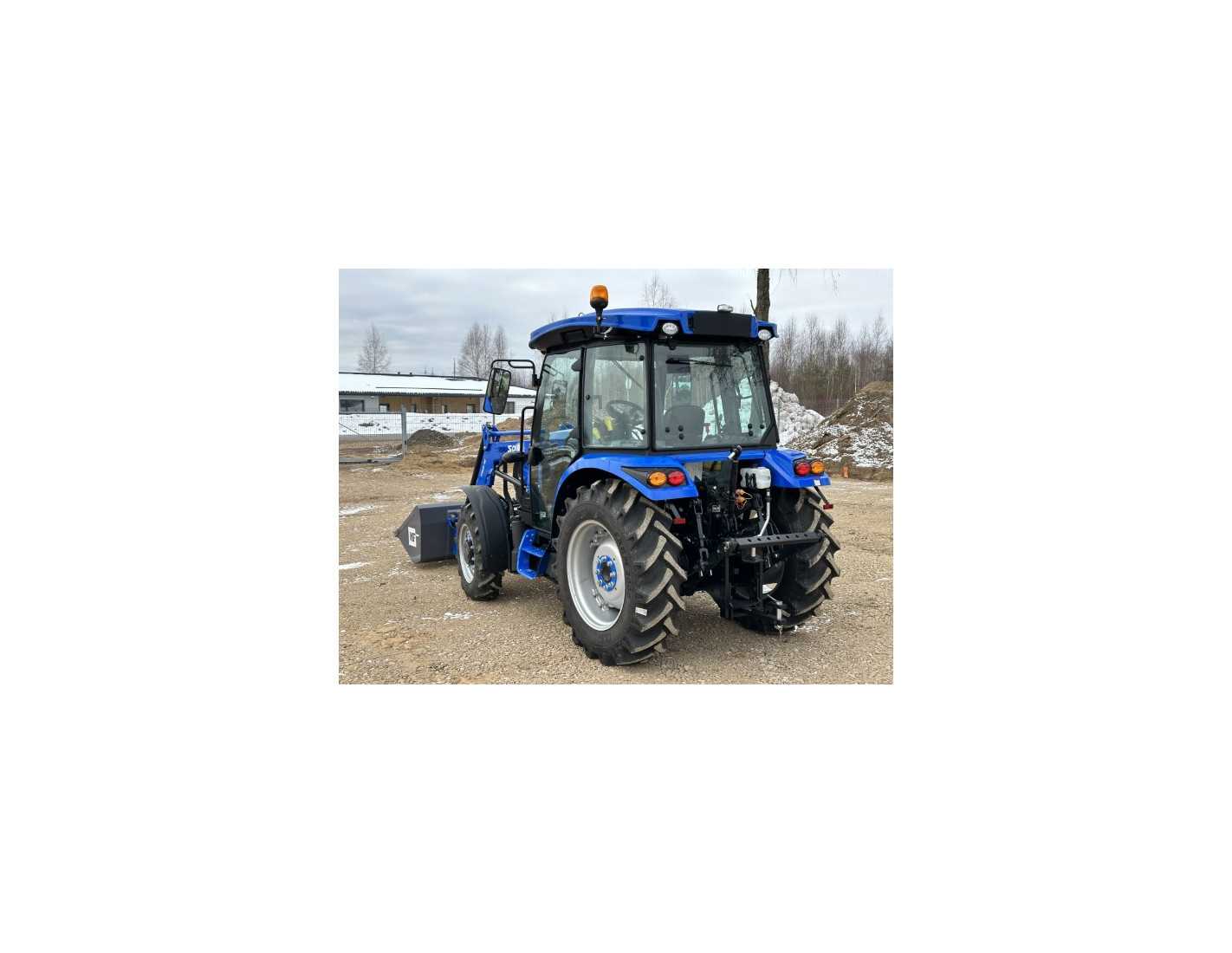

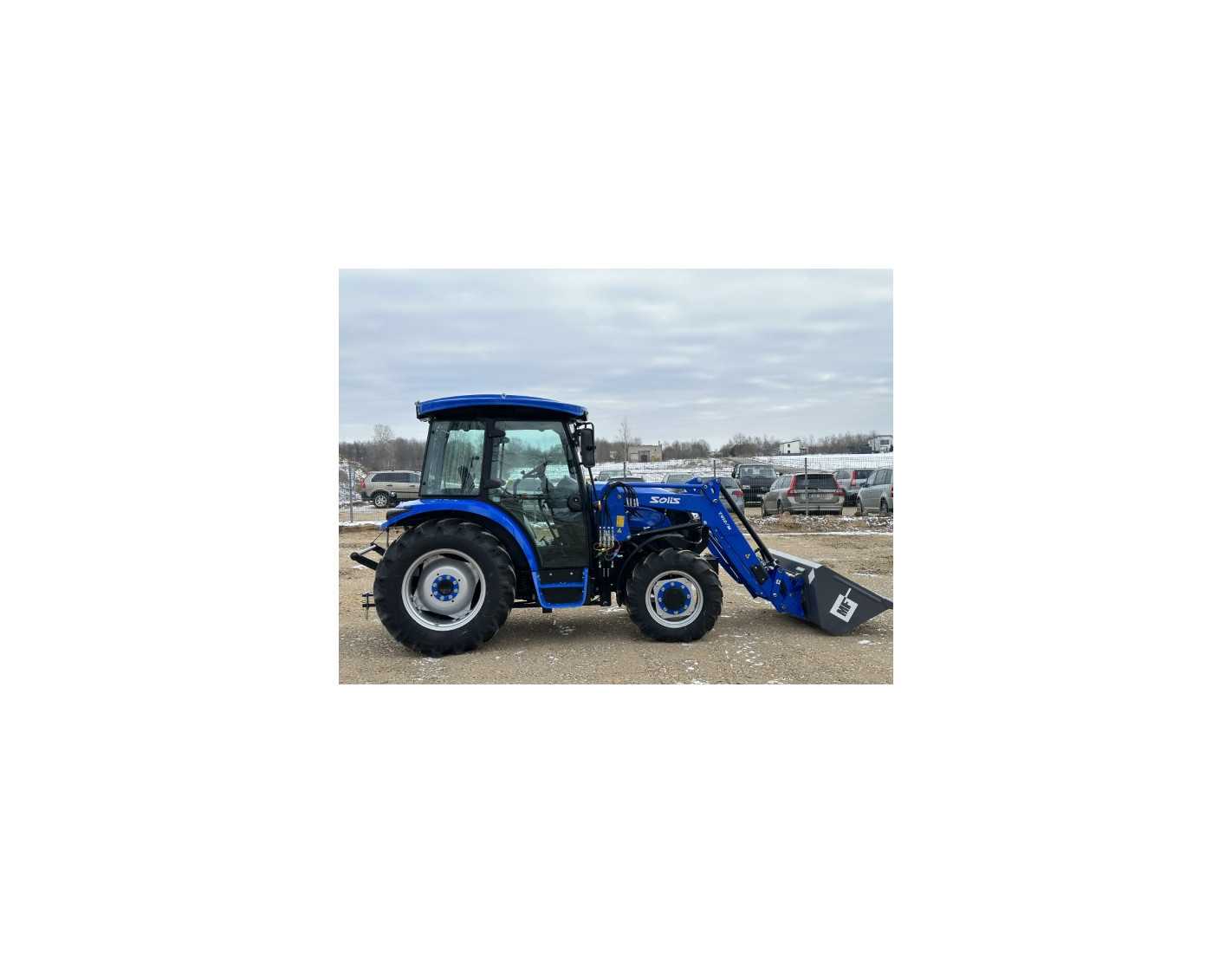

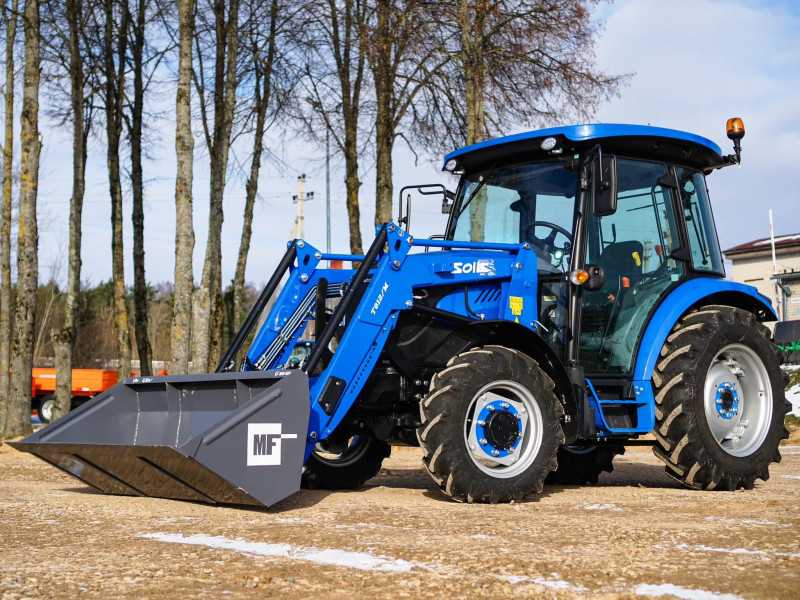

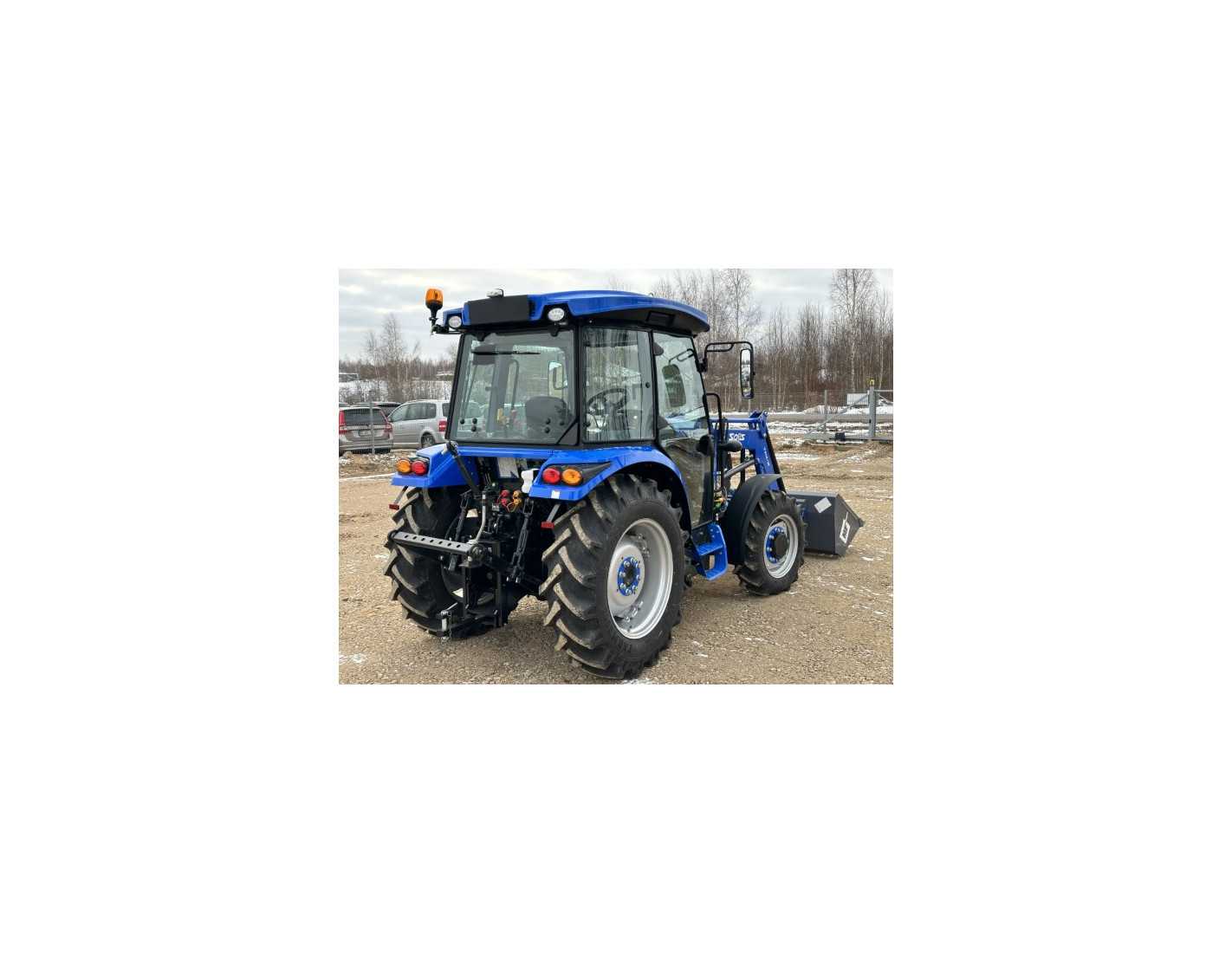

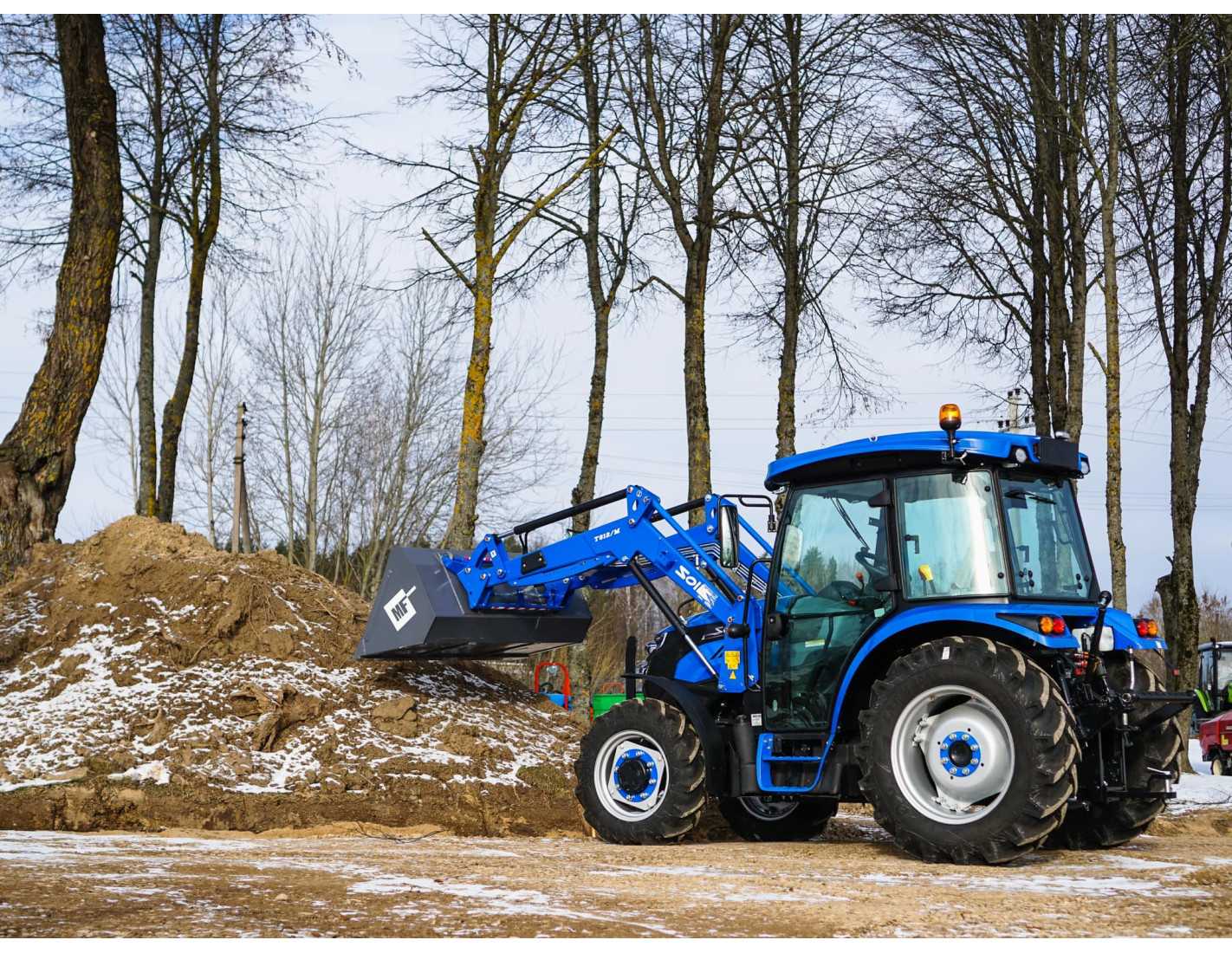

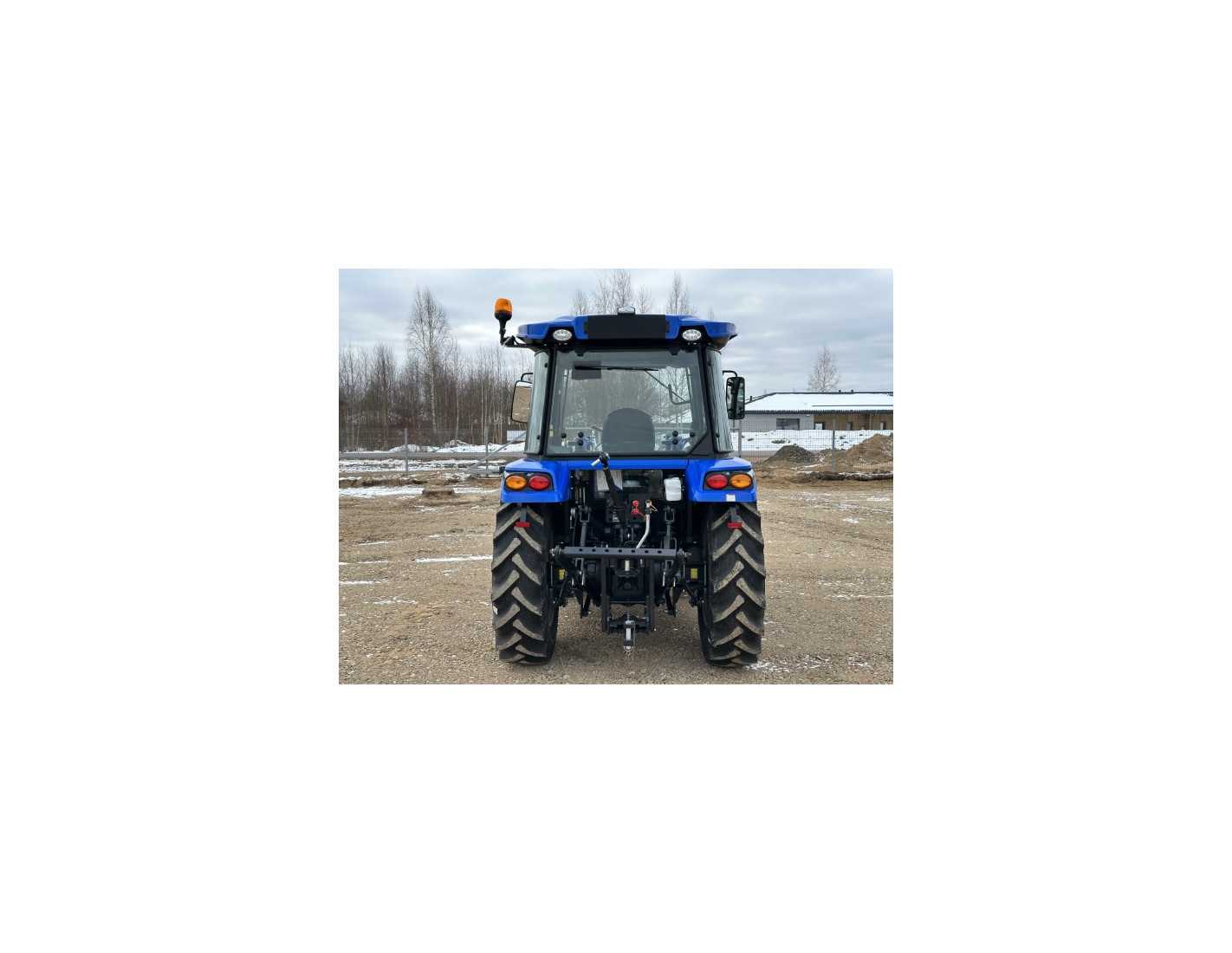

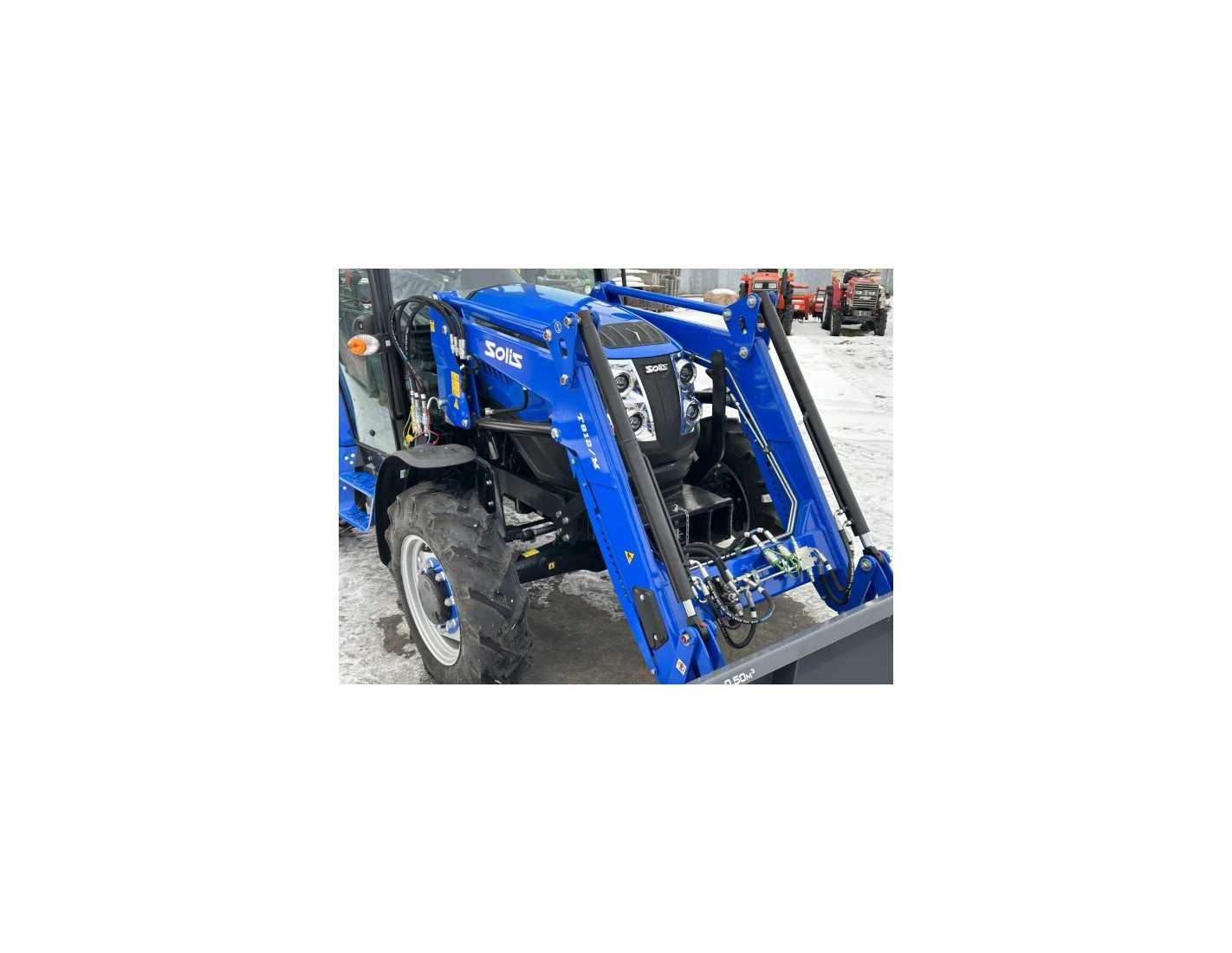

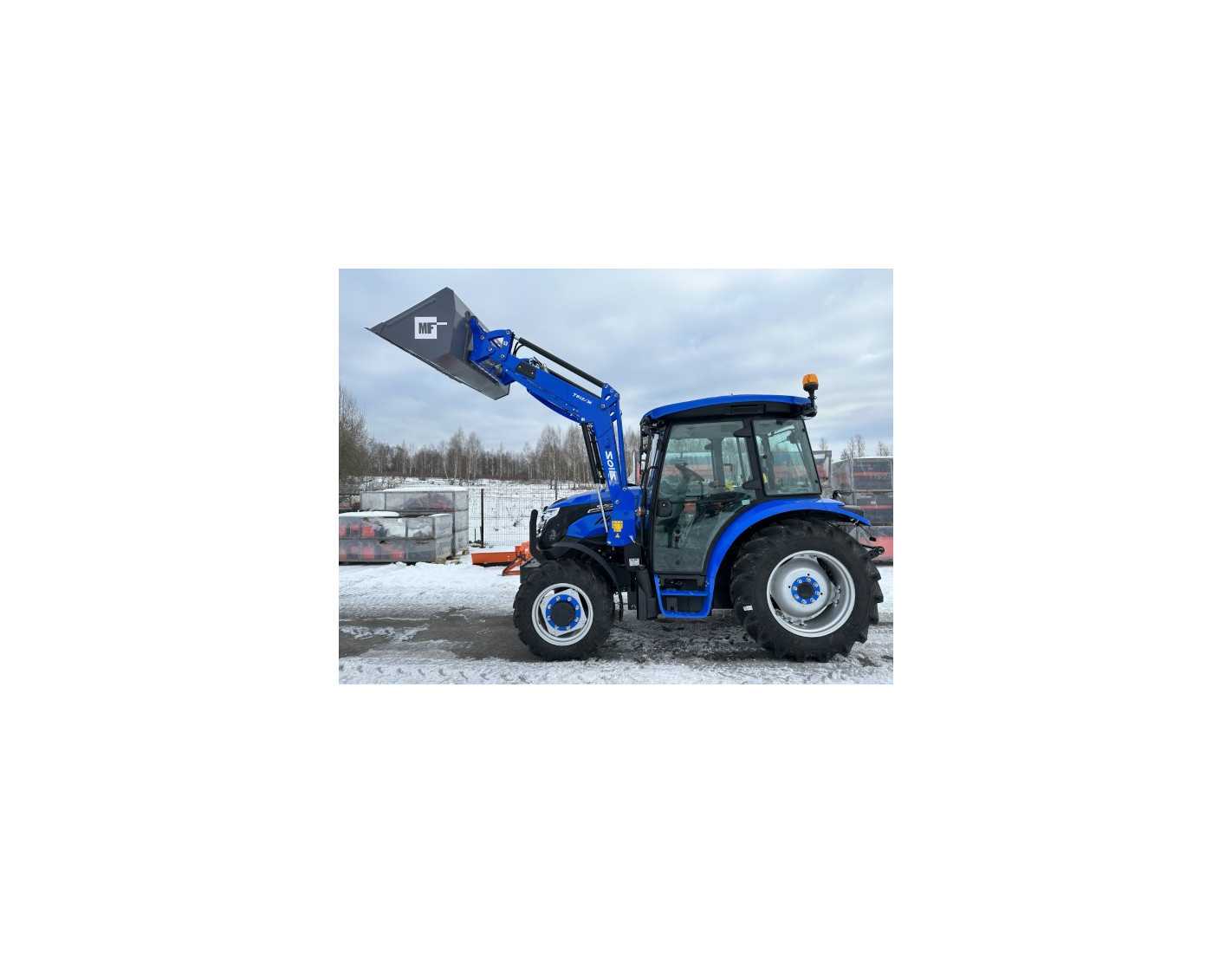

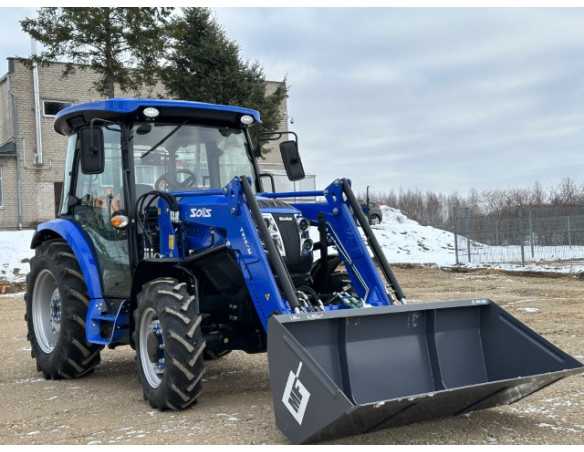

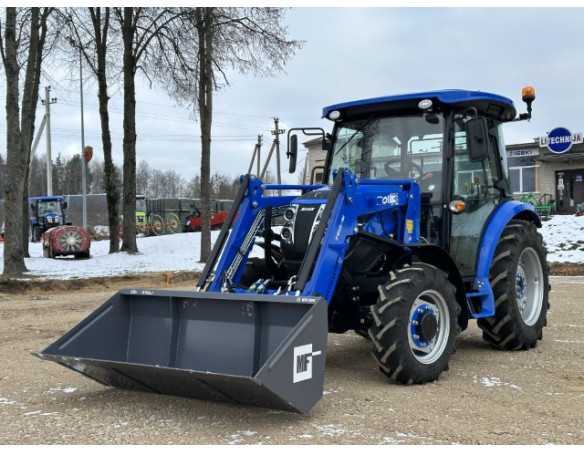

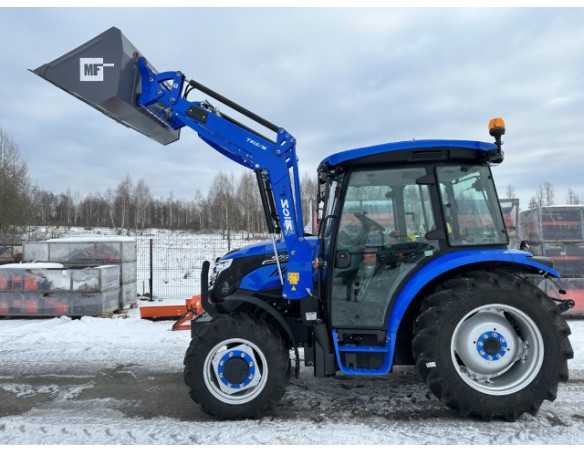

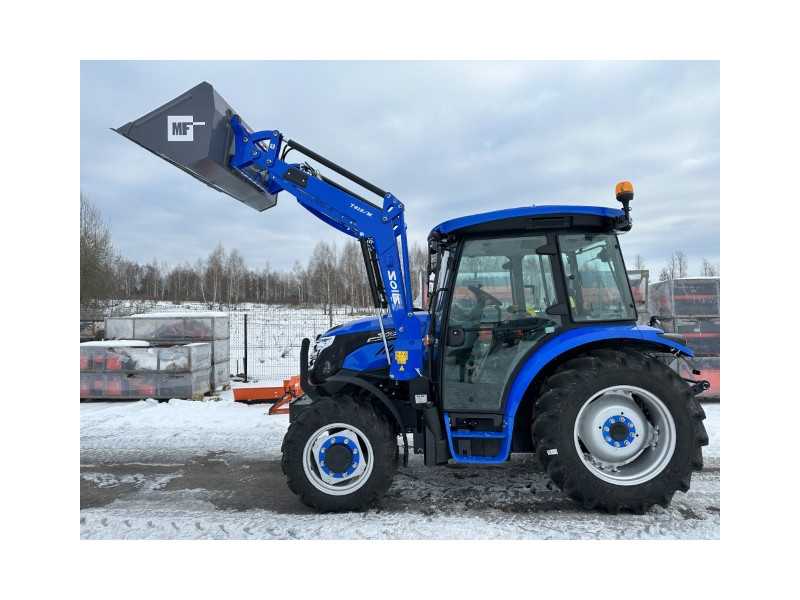

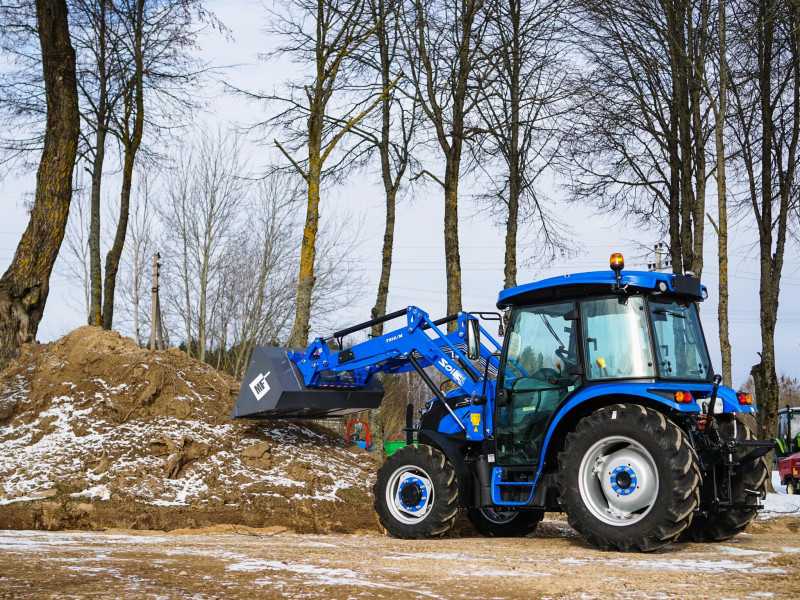

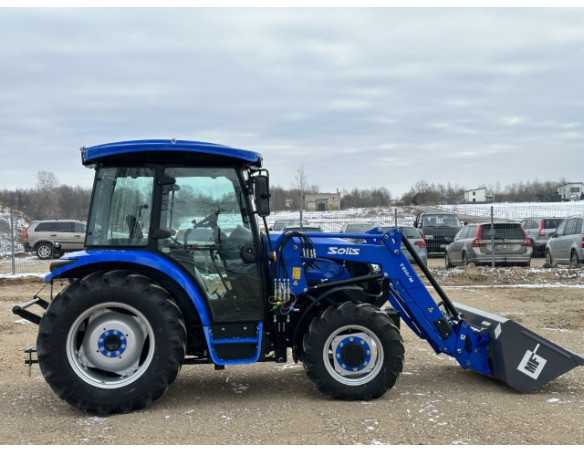

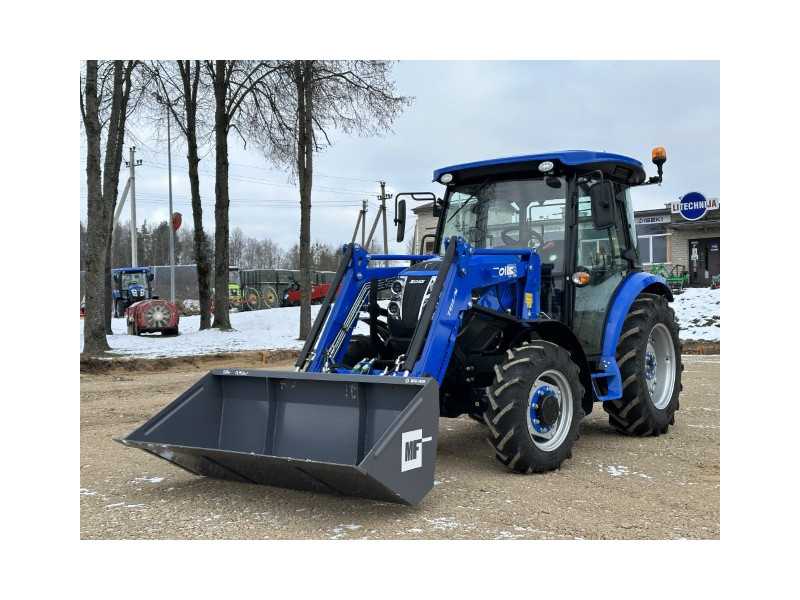

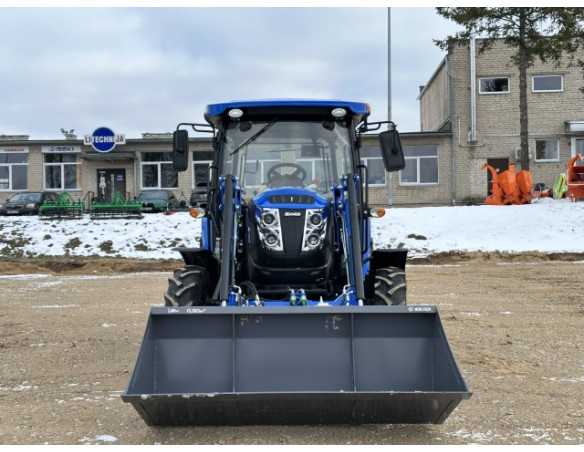

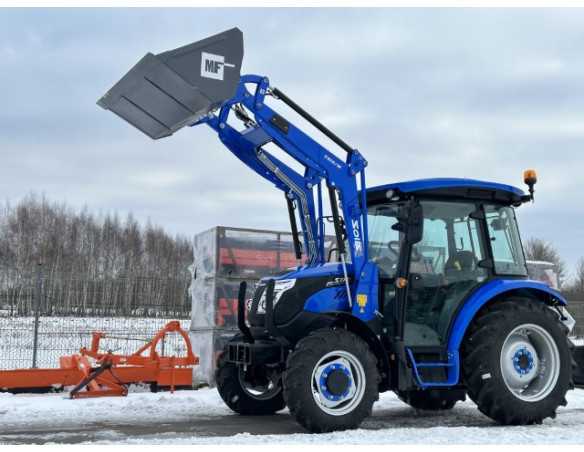

SOLIS 50 with front loader

VARIKLIS

• Number of cylinders / cc / valves / emission level: 3/ 3065/ 4/ CRDi Stage V;

• Ecology system: DOC + DPF;
• Nominal engine power (kw/AG): 37.3/50;
• Engine speed: 2000;

• Max. torque (Nm)220@1400 RPM;

• Turbine: yes;
• Tintercooler: yes;

• Air intake: dtwo-stage dry type;
• The exhaust pipe faces upwards;
• Fuel tank capacity (l): 72.


TRANSMISSION

• 12×12 Synchro Shuttle gearbox (4WD);
• Maximum driving speed (forward): 30 km/h;
• Minimum driving speed (forward): 1.3 km/h.

FRONT AXIS

• 4WD front axle;
• Differential lock;
• 4WD: manual;

• Brake type: mechaniai.

PTO (PTO shaft)

• Type of PTO: mechanical;

• 540/540E.

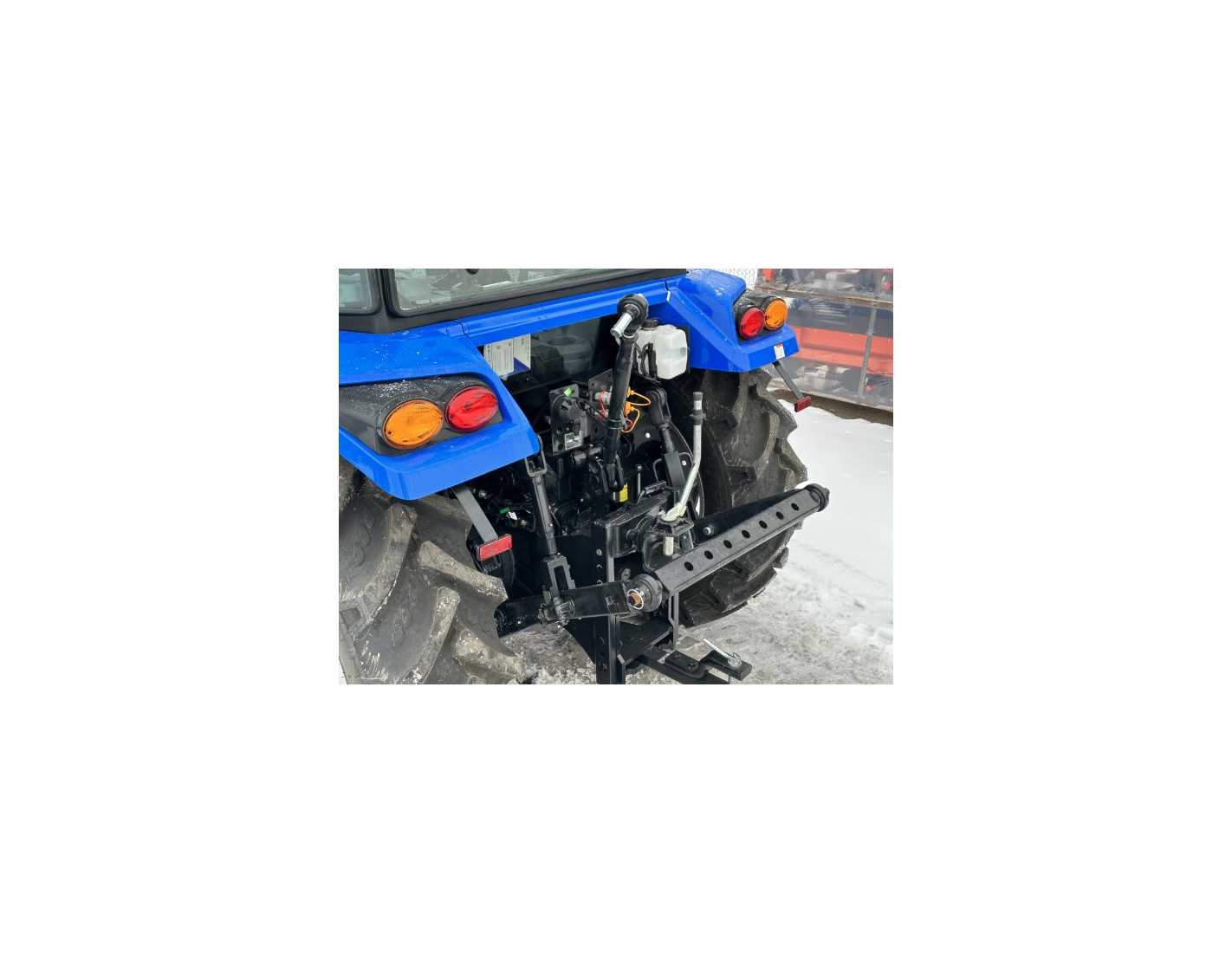

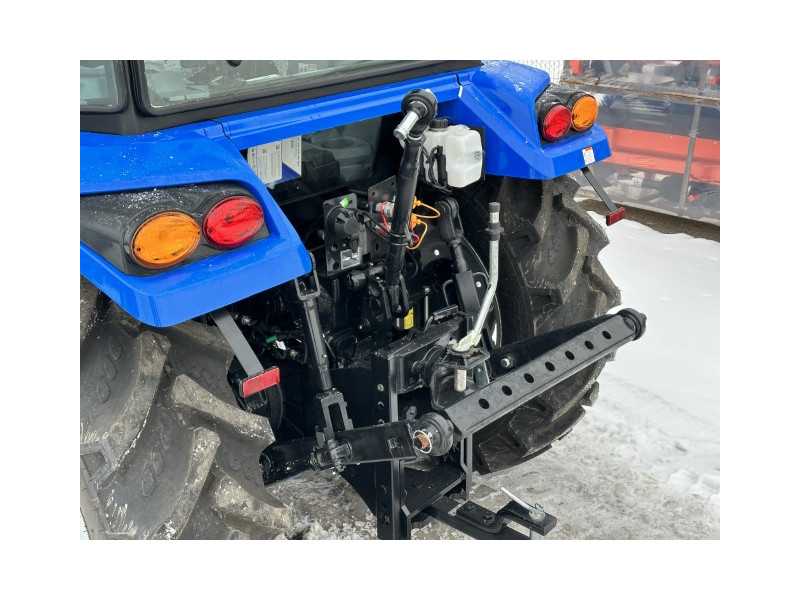

HYDRAULICS

• Hydraulic pump flow rate (l/m): 45;
• Mechanical descent rate control;
• Automatic lifting mechanism (Liftomatic);
• Lifting capacity (kg): 2500;

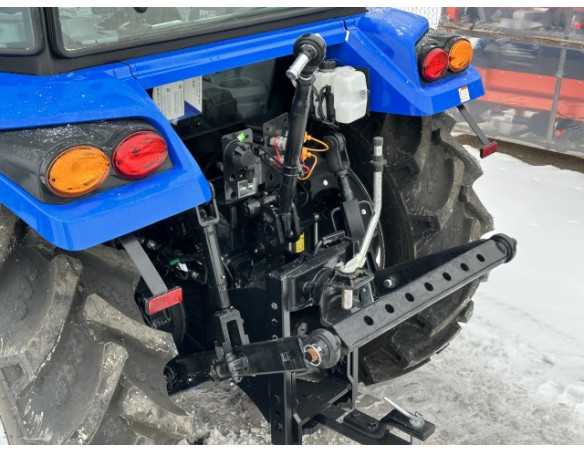

• Category of coupling drawbar: II;
• Number of hydraulic outlets (rear): 2;

MEASUREMENTS

• Wheelbase (mm): 2225;

• Overall height (mm): 2690/2480;
• Overall width (mm): 1840-1880;

• Overall length (mm): 3825-4055;

• Front track width (mm): 1570;

• Rear track width (mm): 1450;
• Ground clearance (mm): 310;
• Mass (kg): 2870;

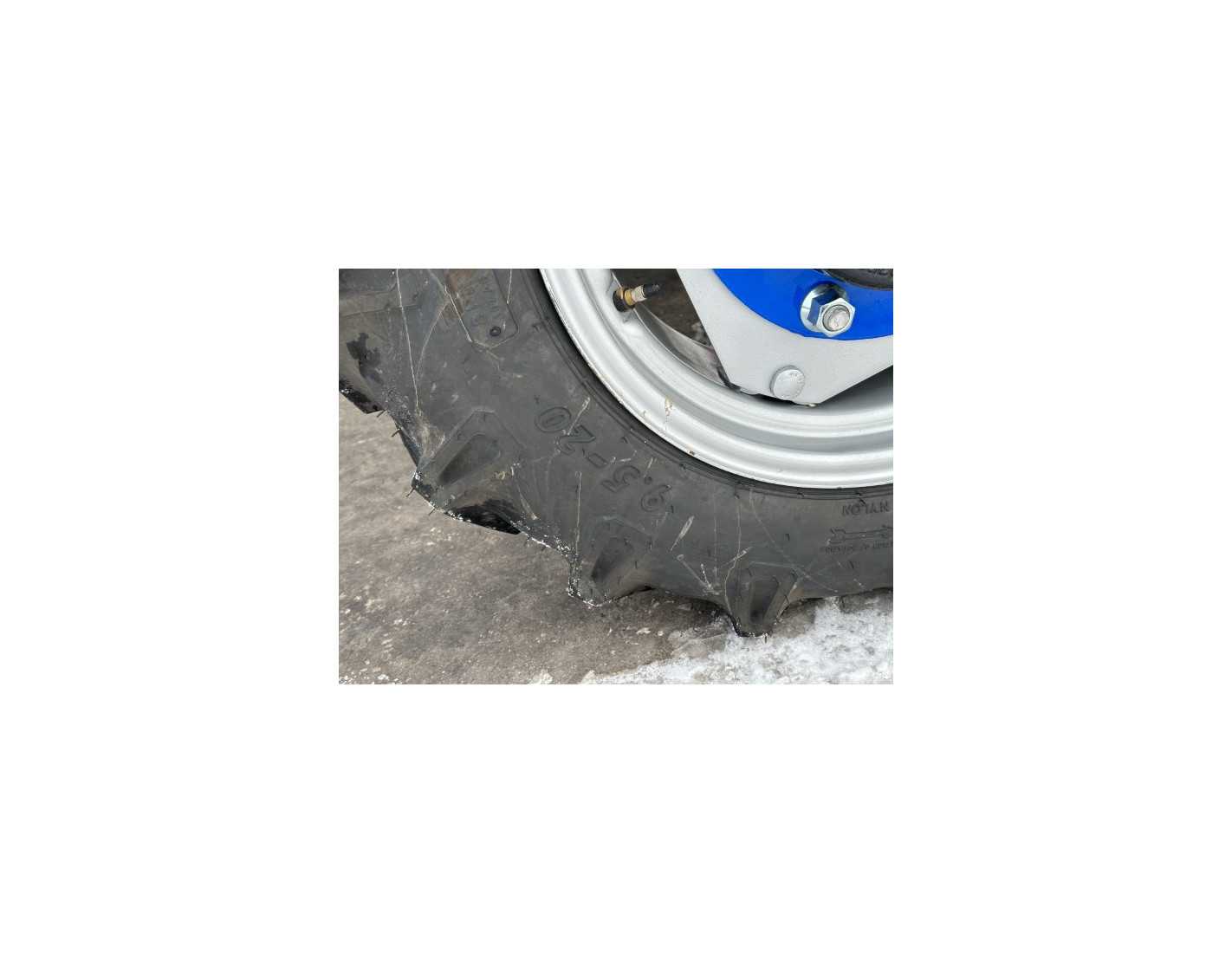

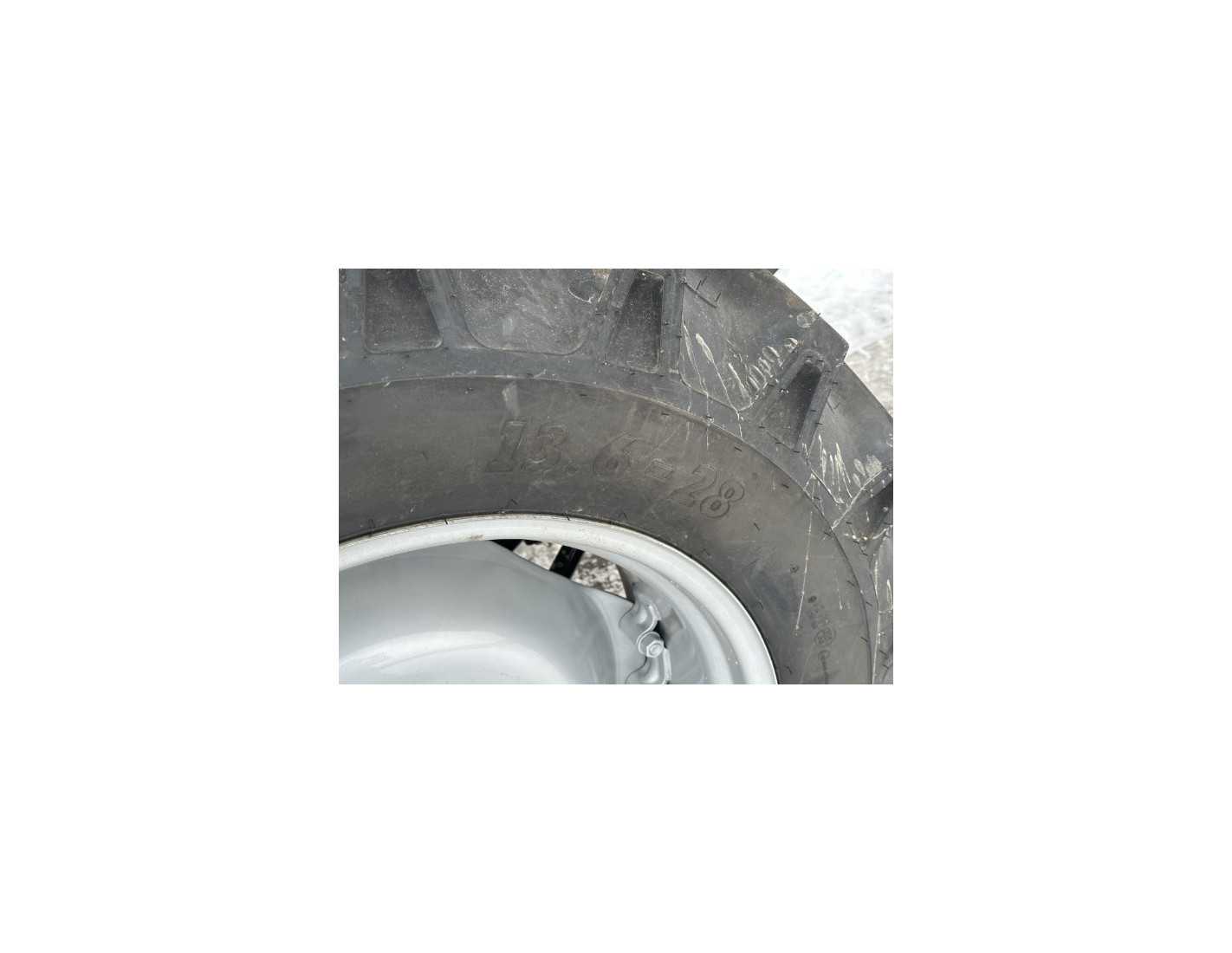

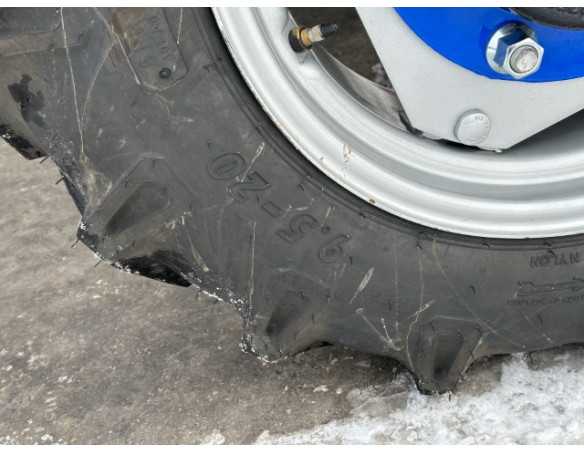

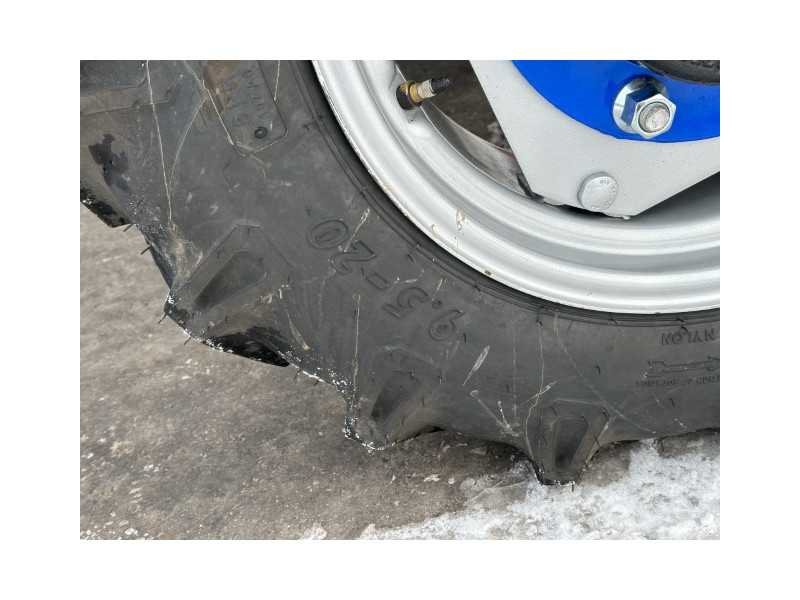

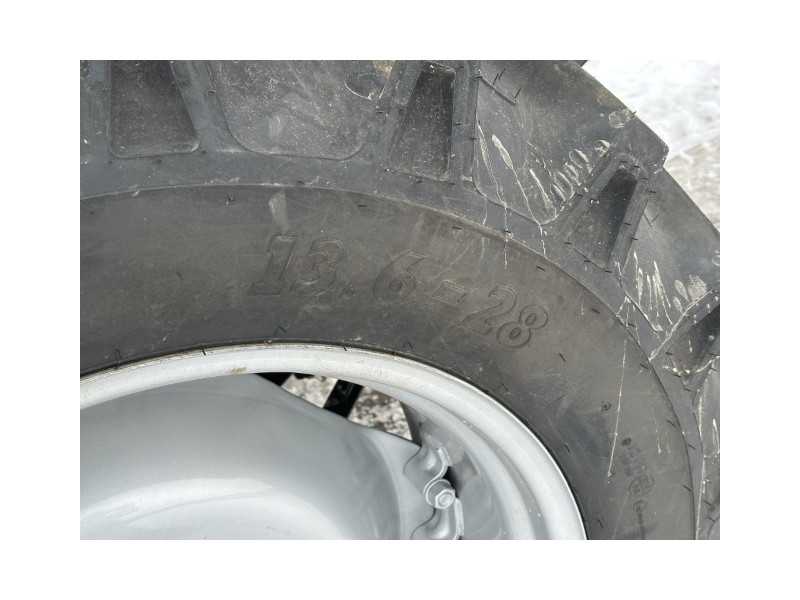

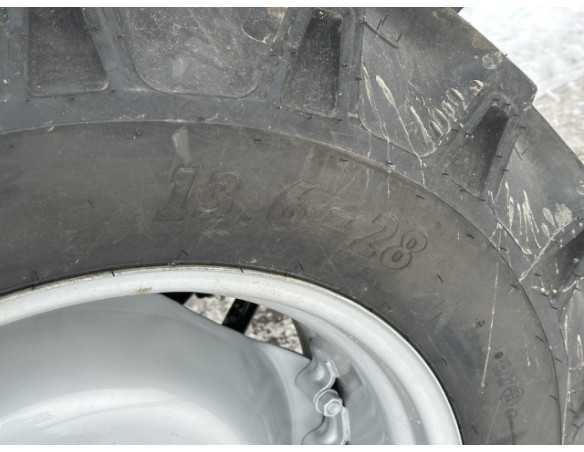

• Tyre dimensions (front/rear): 9.5×20 / 13.6×28.


ELECTRONICS

• Battery: 110AH 800CCA;

• Generator: 90A/120A;

• A button (in the box) controls the battery cut-off switch;

• Rosette for trailer;
• USB socket for charging devices;

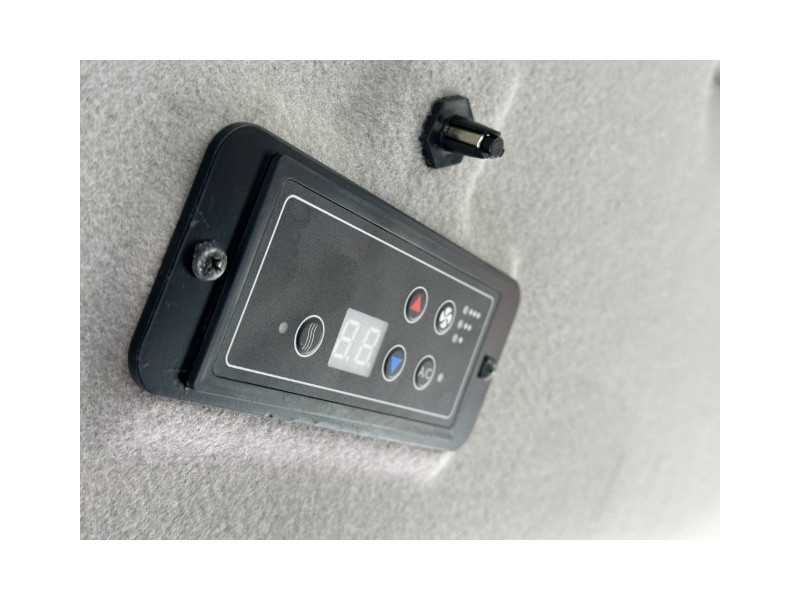

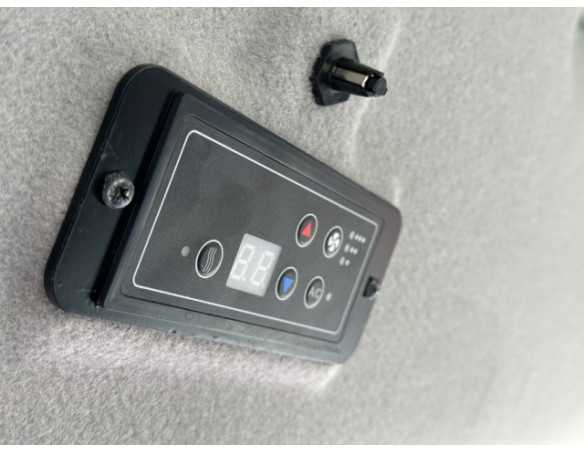

• Air conditioning;

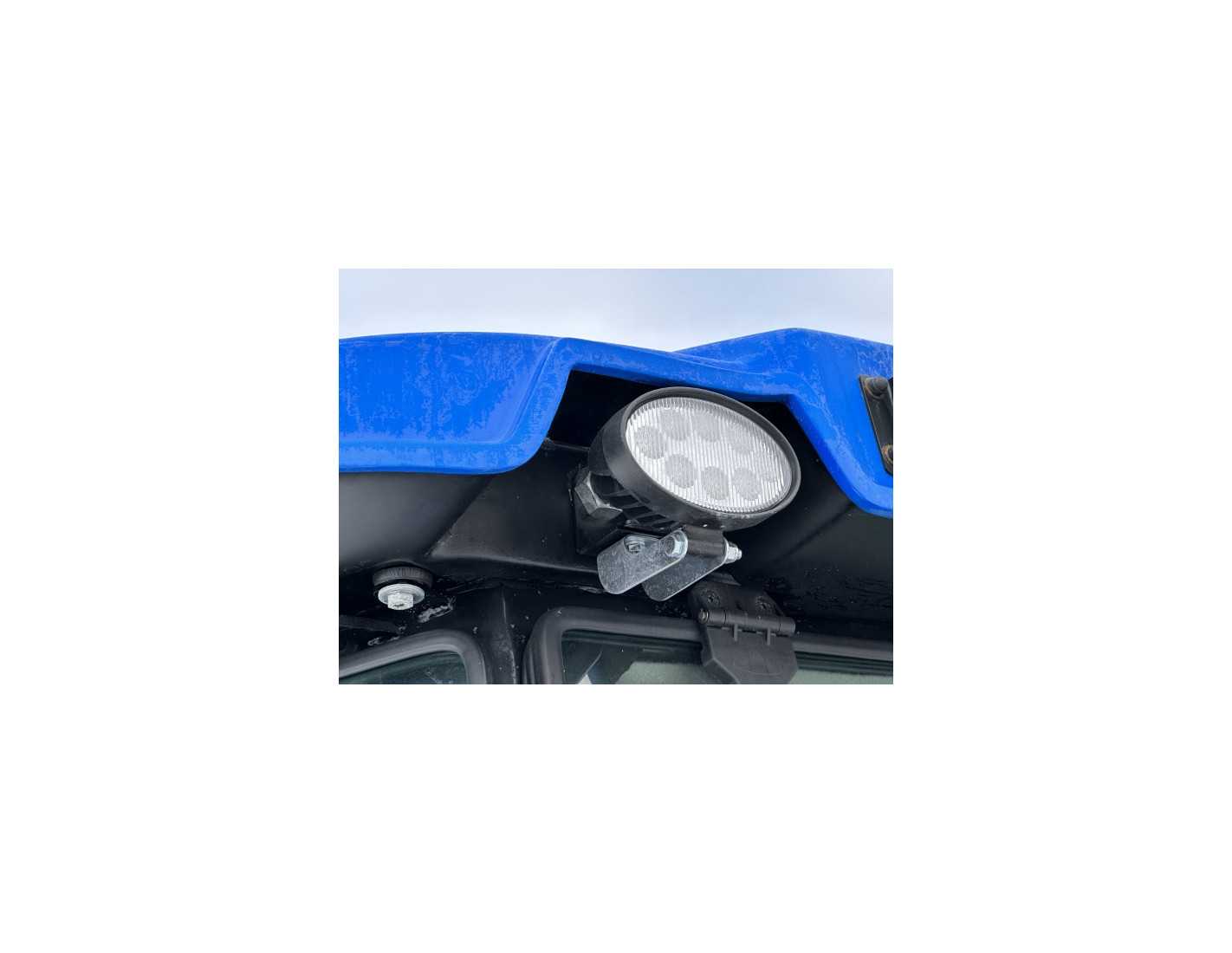

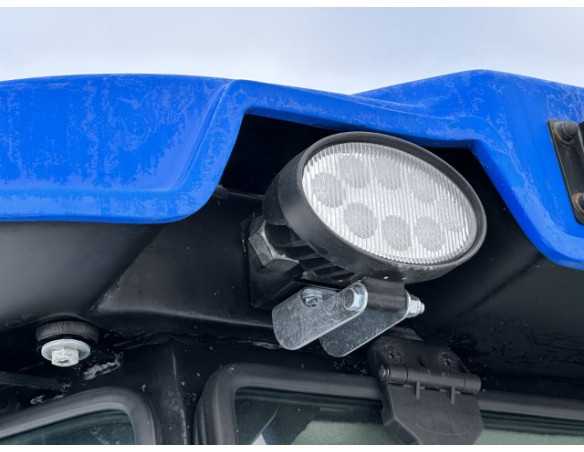

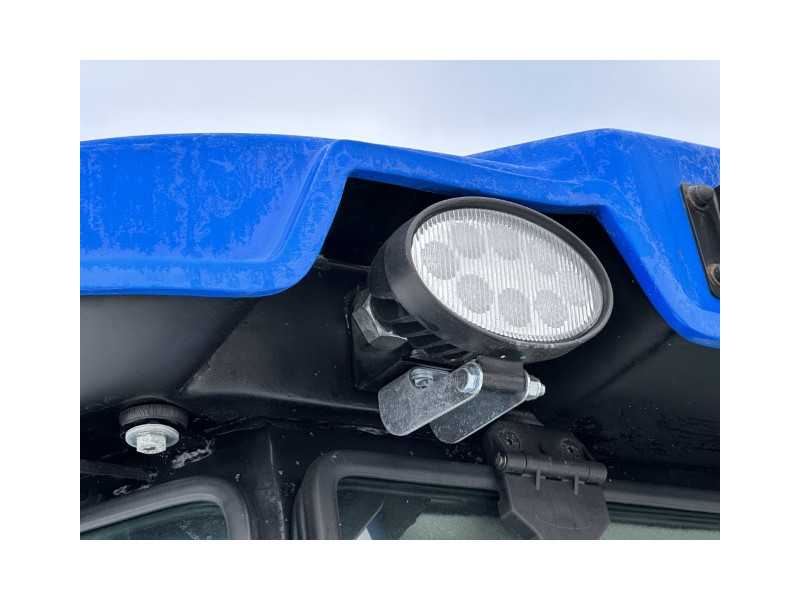

• Additional LED lights (on cab);
• Magnetola;
• LED daytime running lights;
• Engine heating system from 220V mains.
