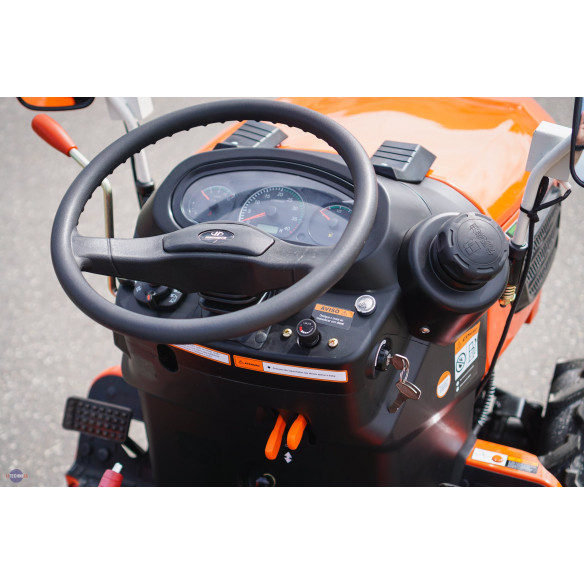

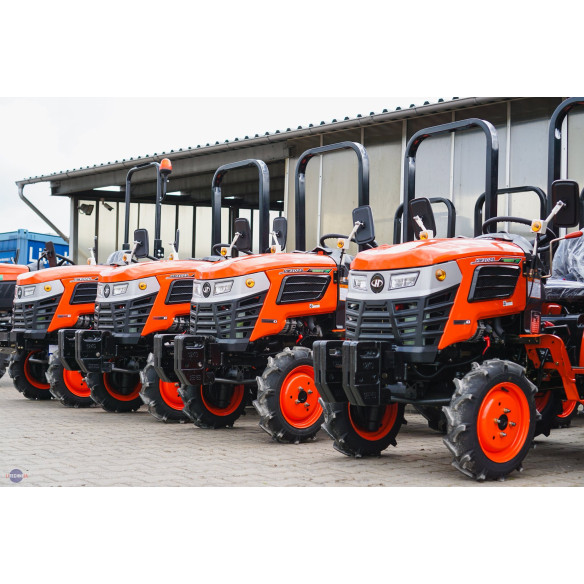

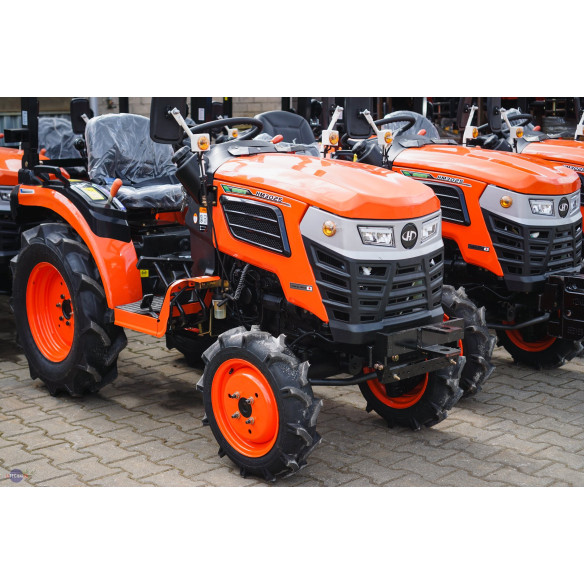

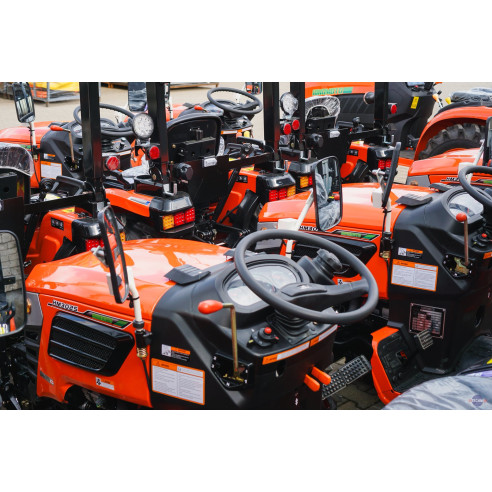

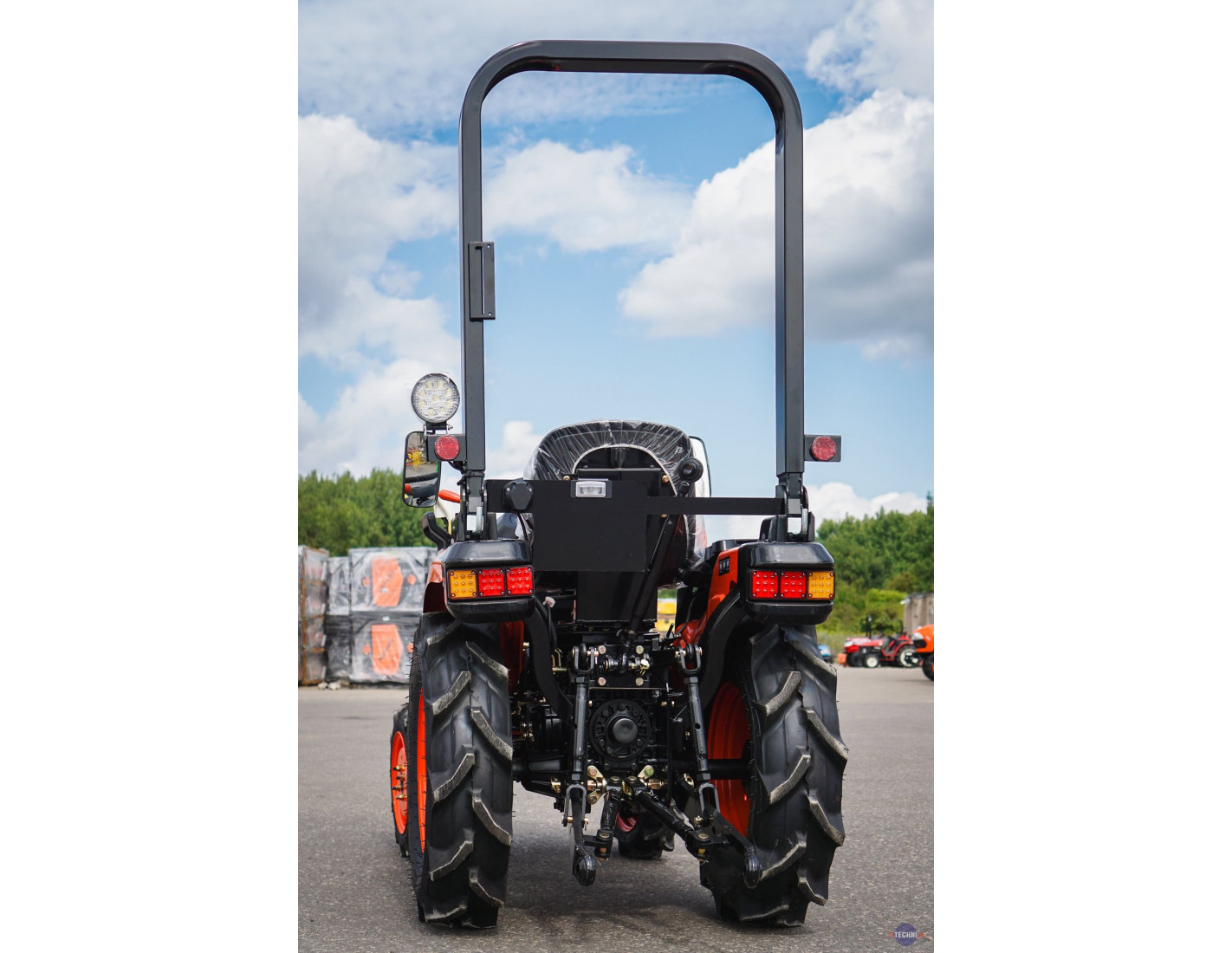

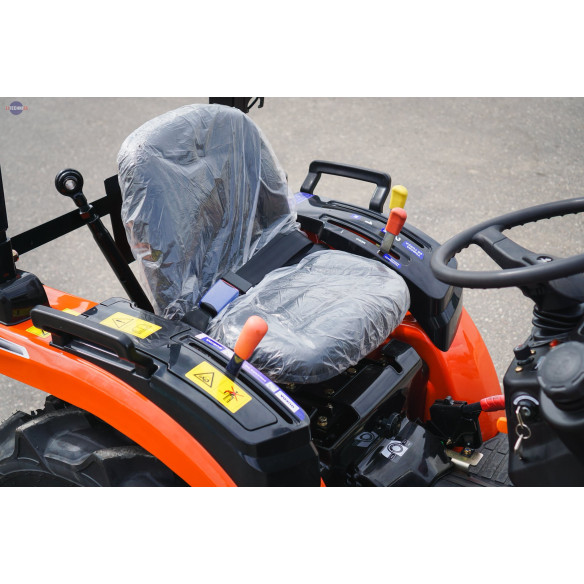

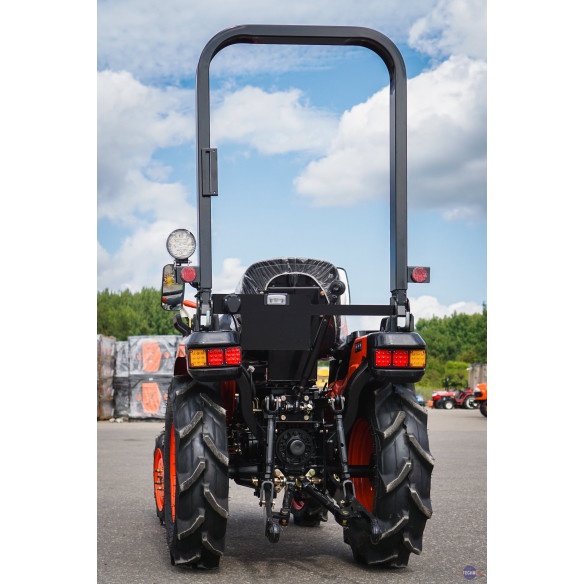

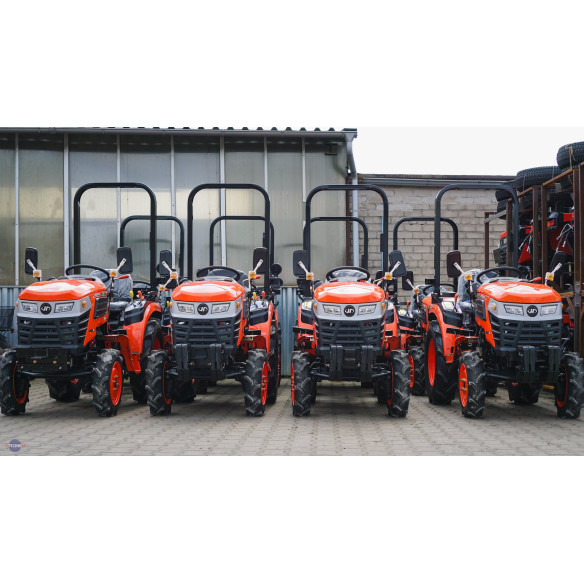

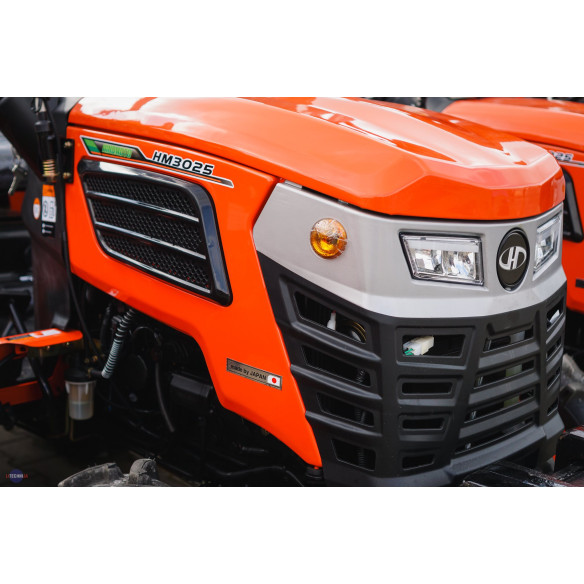

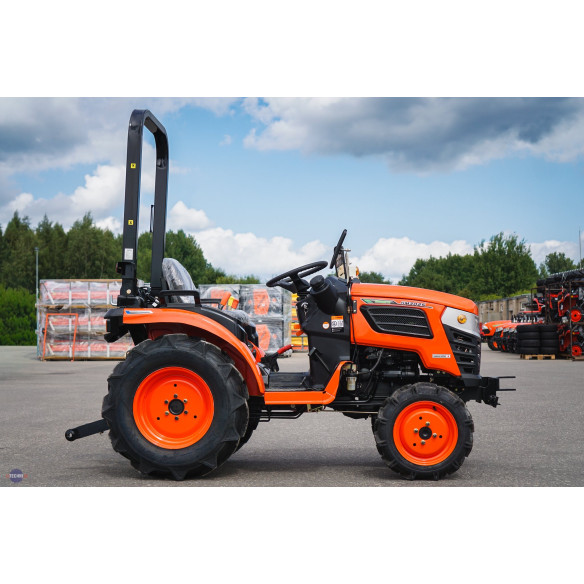

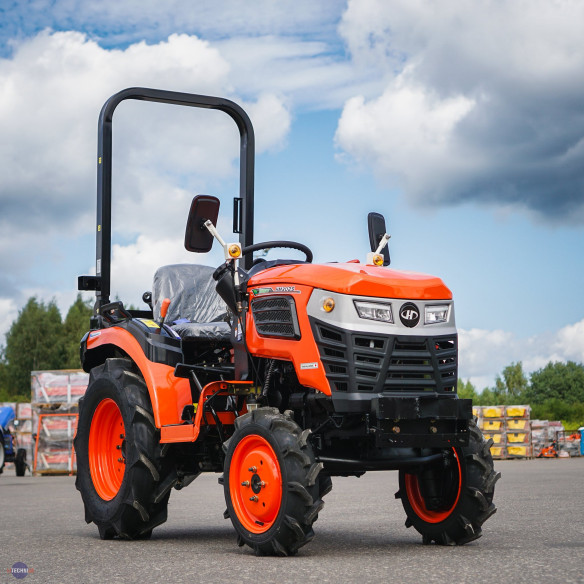

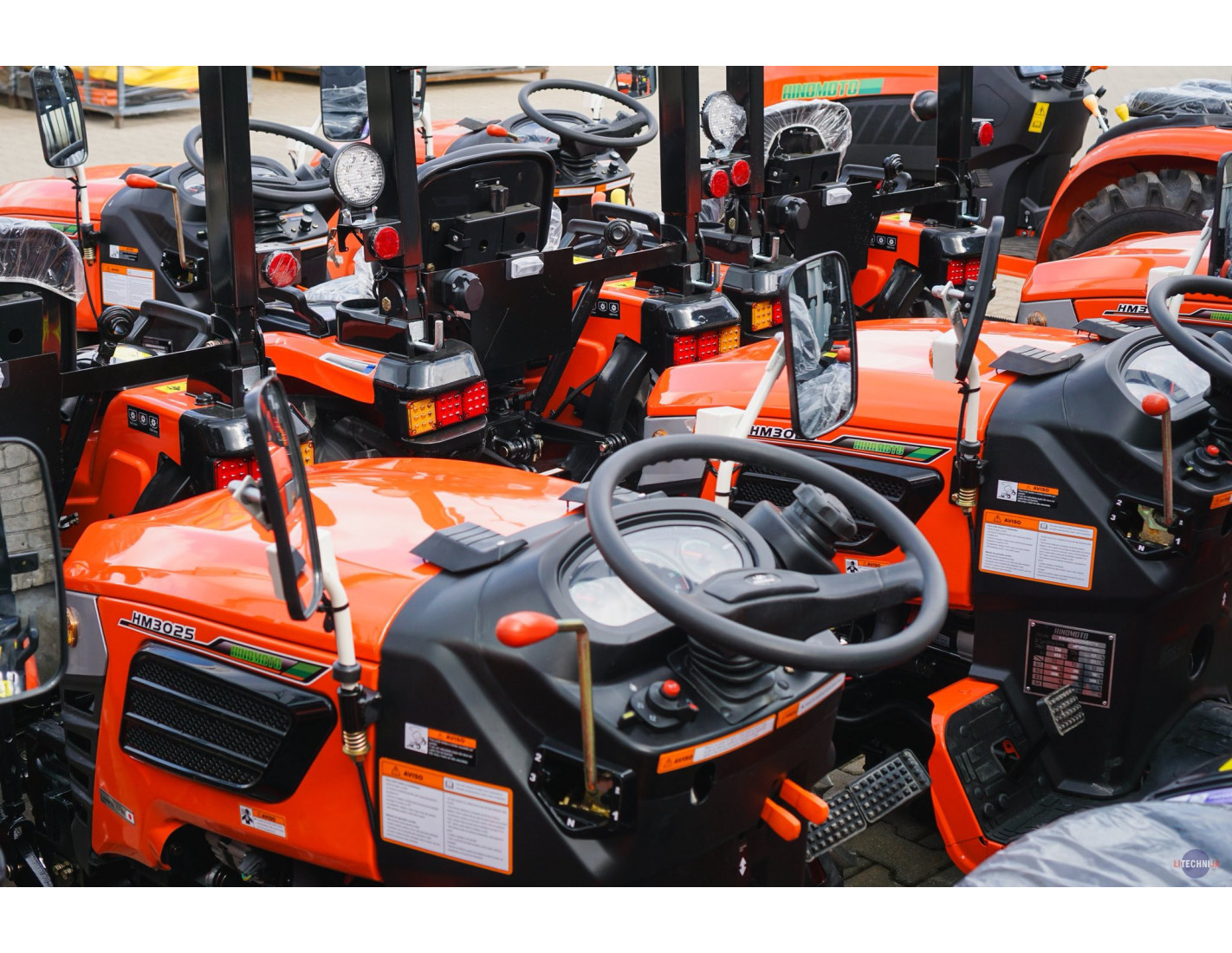

Hinomoto HM3025

Hinomoto HM-3025

• Engine model: XY377-C

• Engine power: 18.3kW / 25hp

• Number of cylinders: 3

• Displacement: 1132 cm³

• Liquid cooled

• Fuel type: diesel

• Fuel tank capacity: 15 L

• Drive: 4WD (four-wheel drive)

• Manual gearbox: 9 forward + 3 reverse gears

• Clutch: single disc, dry type

• Mechanical locking: Manual

• Running speed: up to 15 km/h

• Fast cornering

• PTO speed: 540 and 1000

• PTO shaft: standard, 6 grooves

• Hydraulic power steering

• Hydraulic pump capacity: 25 ltr/min

• Three-point suspension: category 1

• Parking brake

• Tyres (wheels): front 5-12, rear 8-16

• Length: 2345 mm - 2500 mm

• Width: 960 mm

• Height: 2090 mm

• Front wheel track width (distance between wheels): 750 mm - 1200 mm

• Rear wheel track width (distance between wheels): 760 mm - 1200 mm

• Wheelbase: 1270 mm

• Ground clearance: 281 mm

• Mass: 695 kg

• Warranty: 24 months or 1500 motor hours
