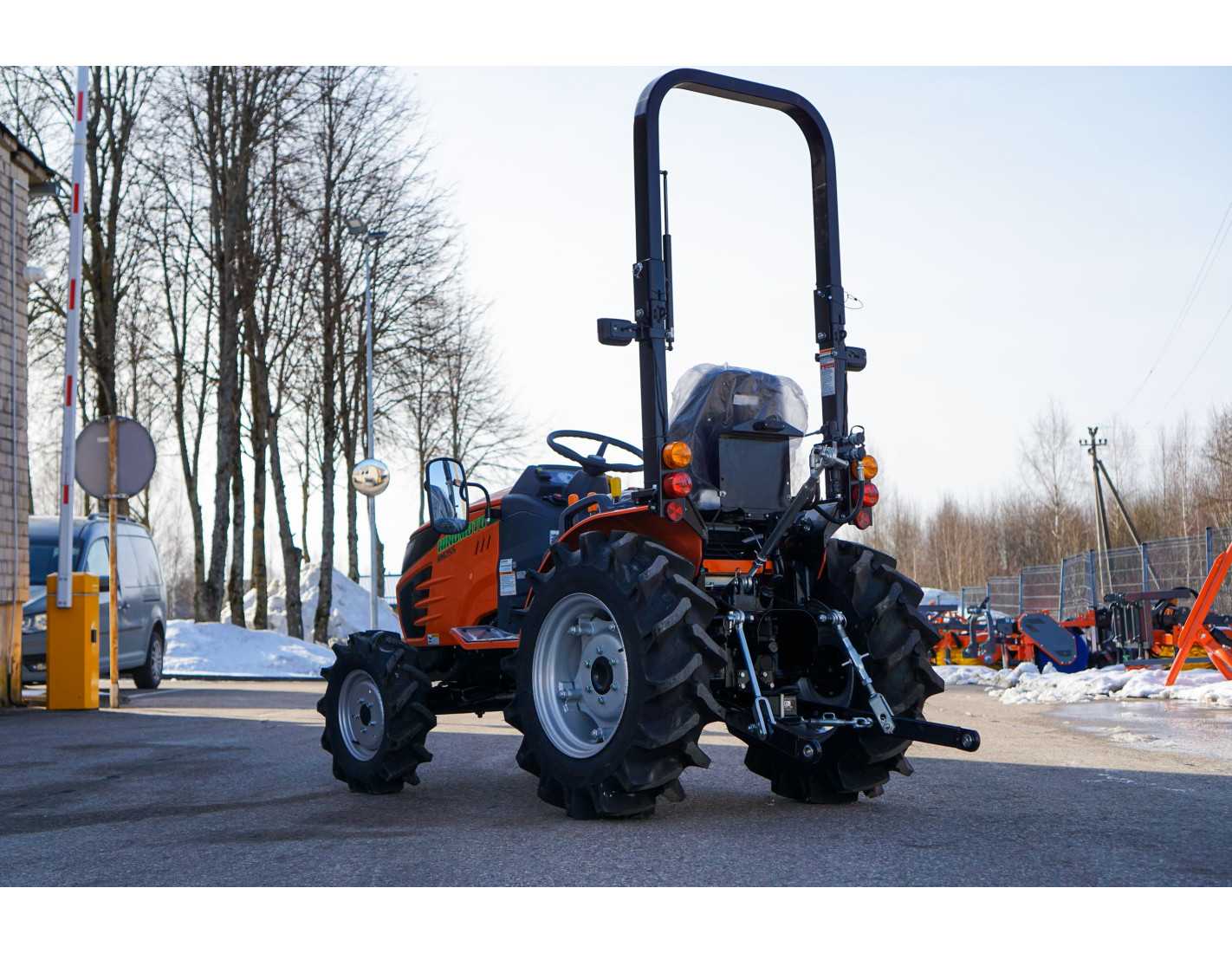

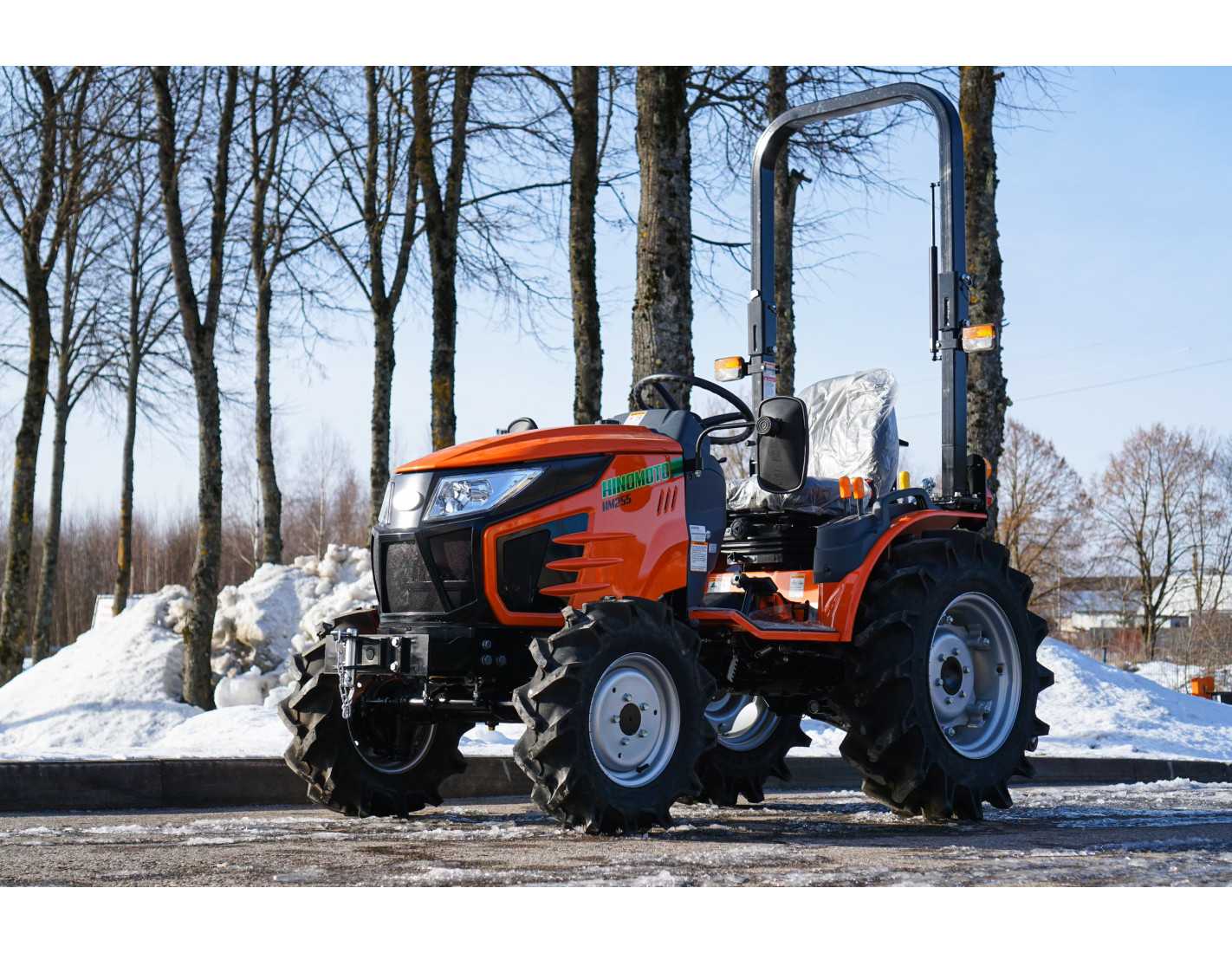

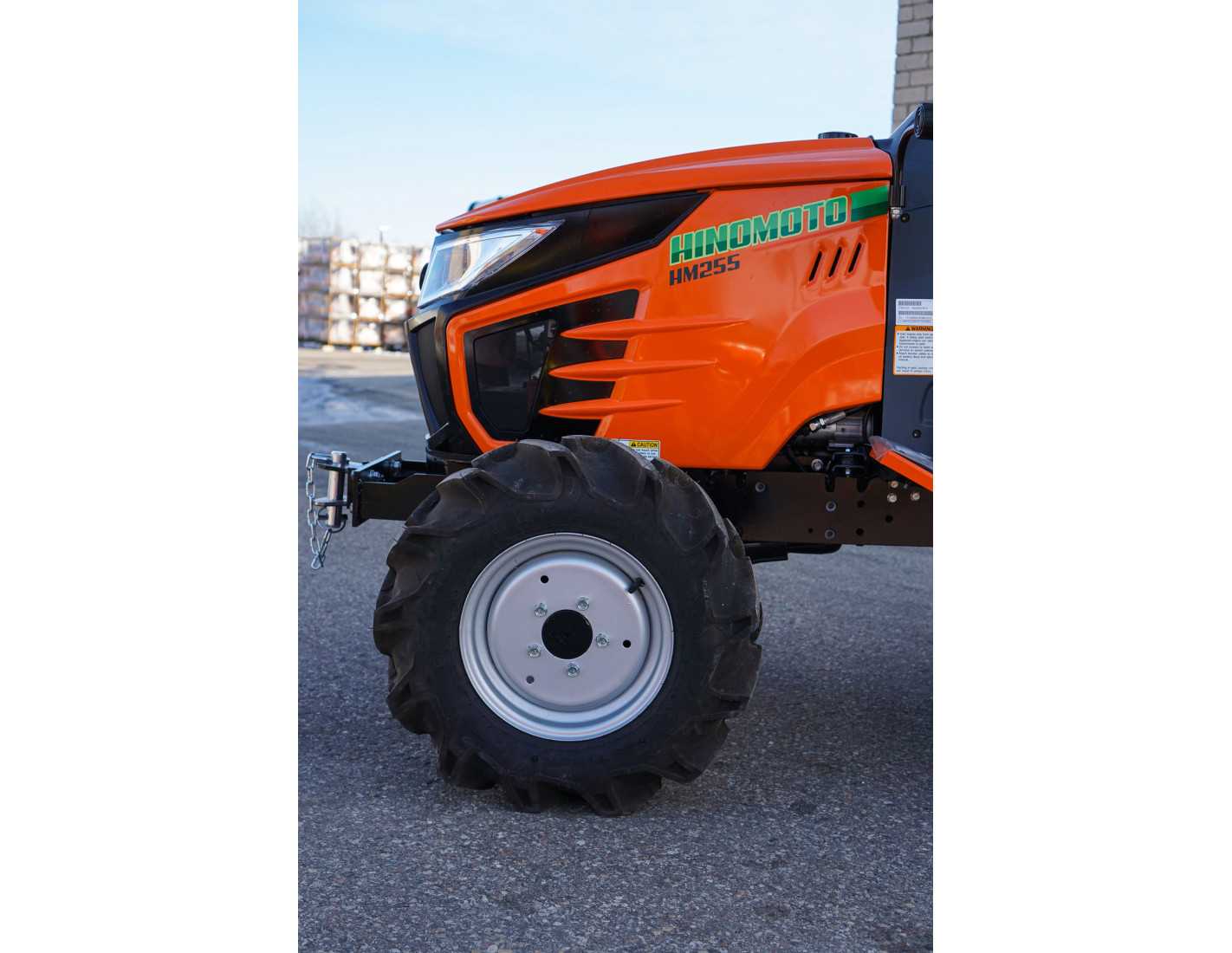

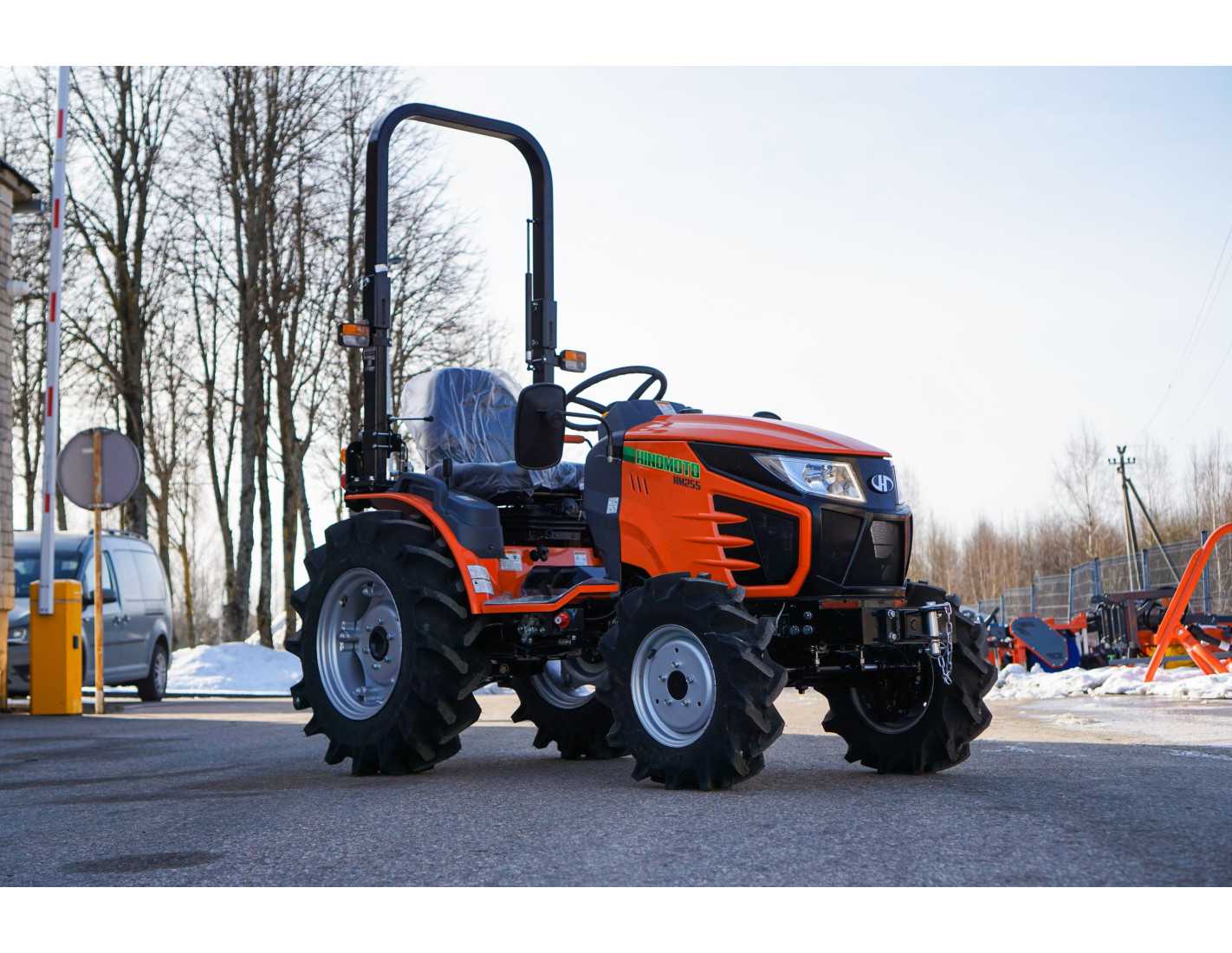

HINOMOTO HM-255

HINOMOTO HM-255 (HST)

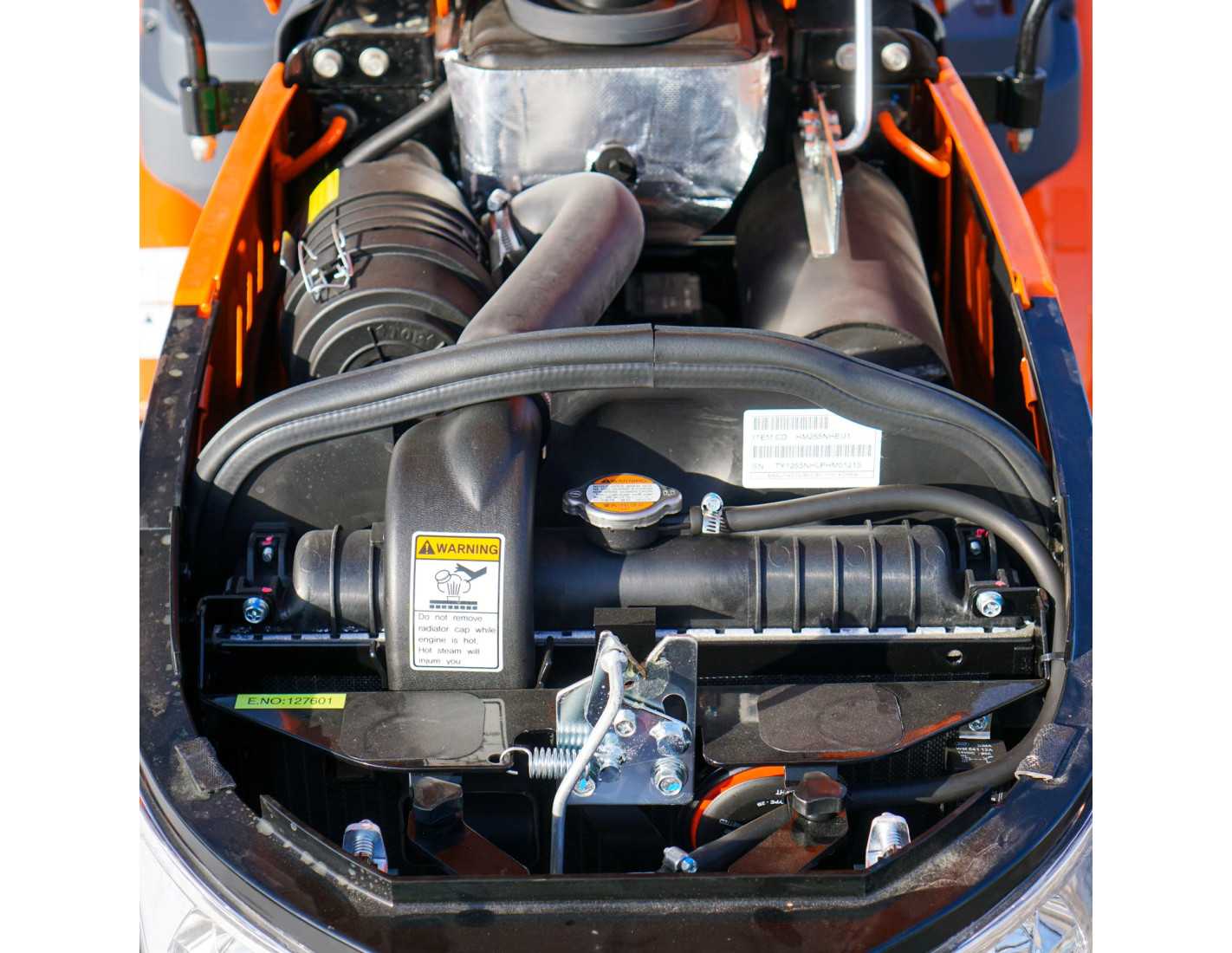

• Engine model: 3TNV76-UD Yanmar
• Type: 3-cylinder, liquid-cooled
• Power: 18,9 kW (25,3 hp) / 3 000 rpm
• Number of cylinders: 3
• Liquid-cooled
• Air filter: simple element
• Exhaust: hyrizontal
• Fuel type: diesel
• Fuel tank capacity: 22 L

Electrical system

• Battery: 12V 50AH
• Starting system: starter
• Replacement spark plugs
• Generator: 12V 40A

Brakes

• Independent, wet type
• Inner diameter: 77 mm
• Outer diameter: 123 mm
• Total brake thickness: 3,4 mm

PTO (PTO)

• Type: semi-independent
• Number of splines: 6 pcs (35 mm)
• Speed: 540 rpm @ 2,893 rpm

Lifting system

• 3-point lifting system: Cat I
• Lifting capacity: 600 kg

Tyre dimensions

• Front: 6.00-12
• Rear: 9.5-18

Dimensions/Weight

• Overall length: 2,553 mm
• Overall width: 1,164 mm
• Overall height: 2,320 mm
• Wheelbase: 1,460 mm
• Ground clearance: 240 mm
• Weight: 768 kg

The tractor is new, unused and complies with all the requirements of the LR and the EU.
