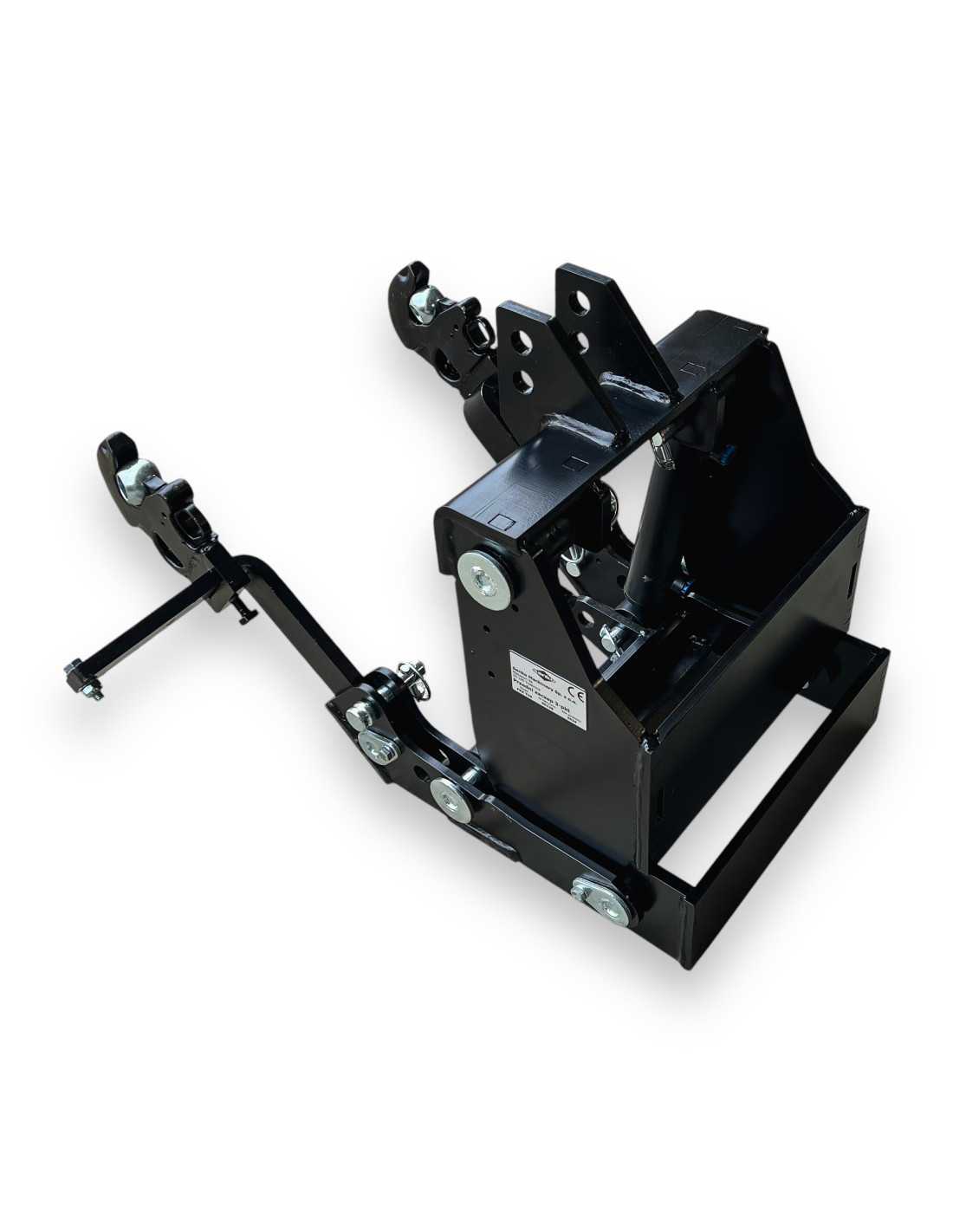

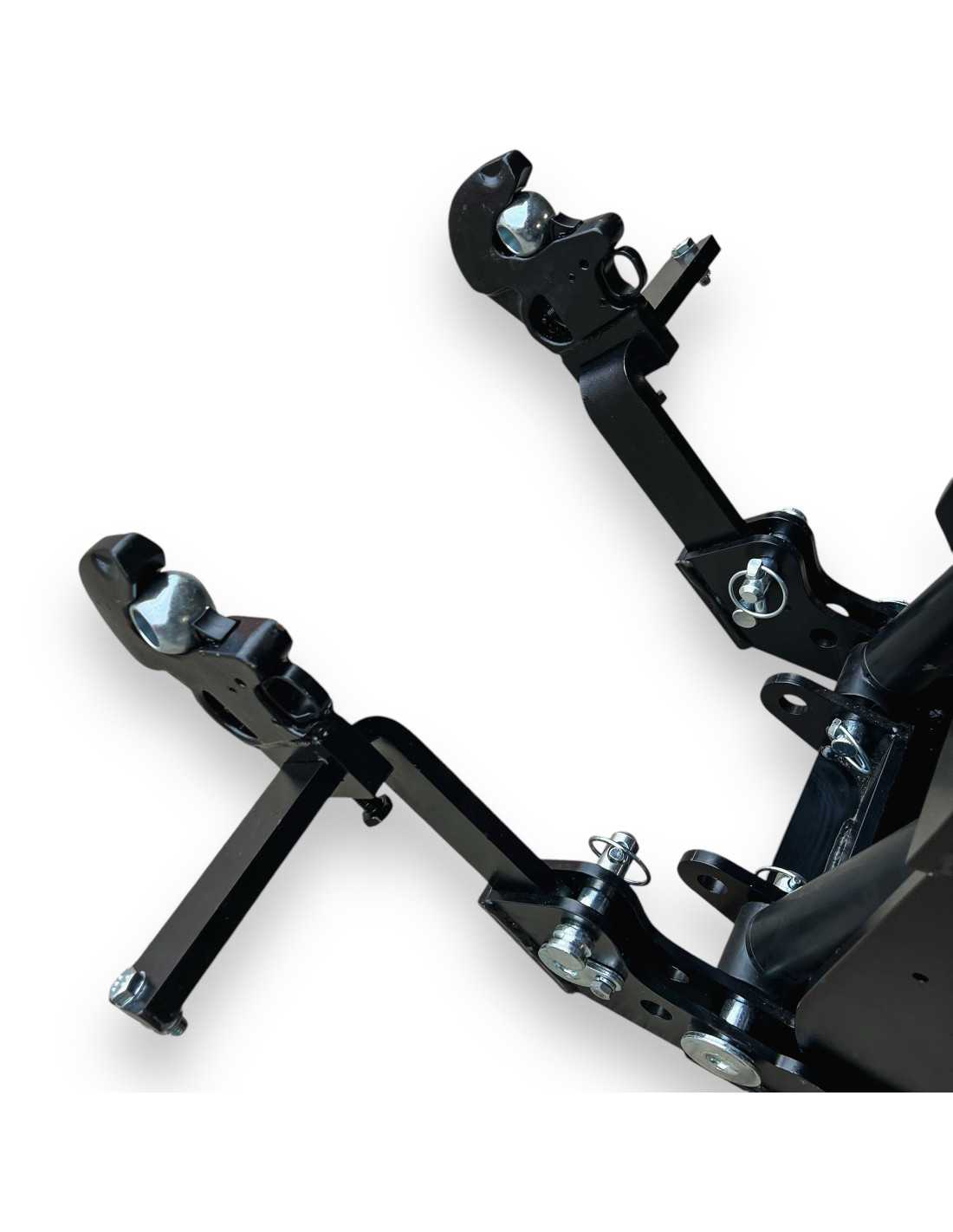

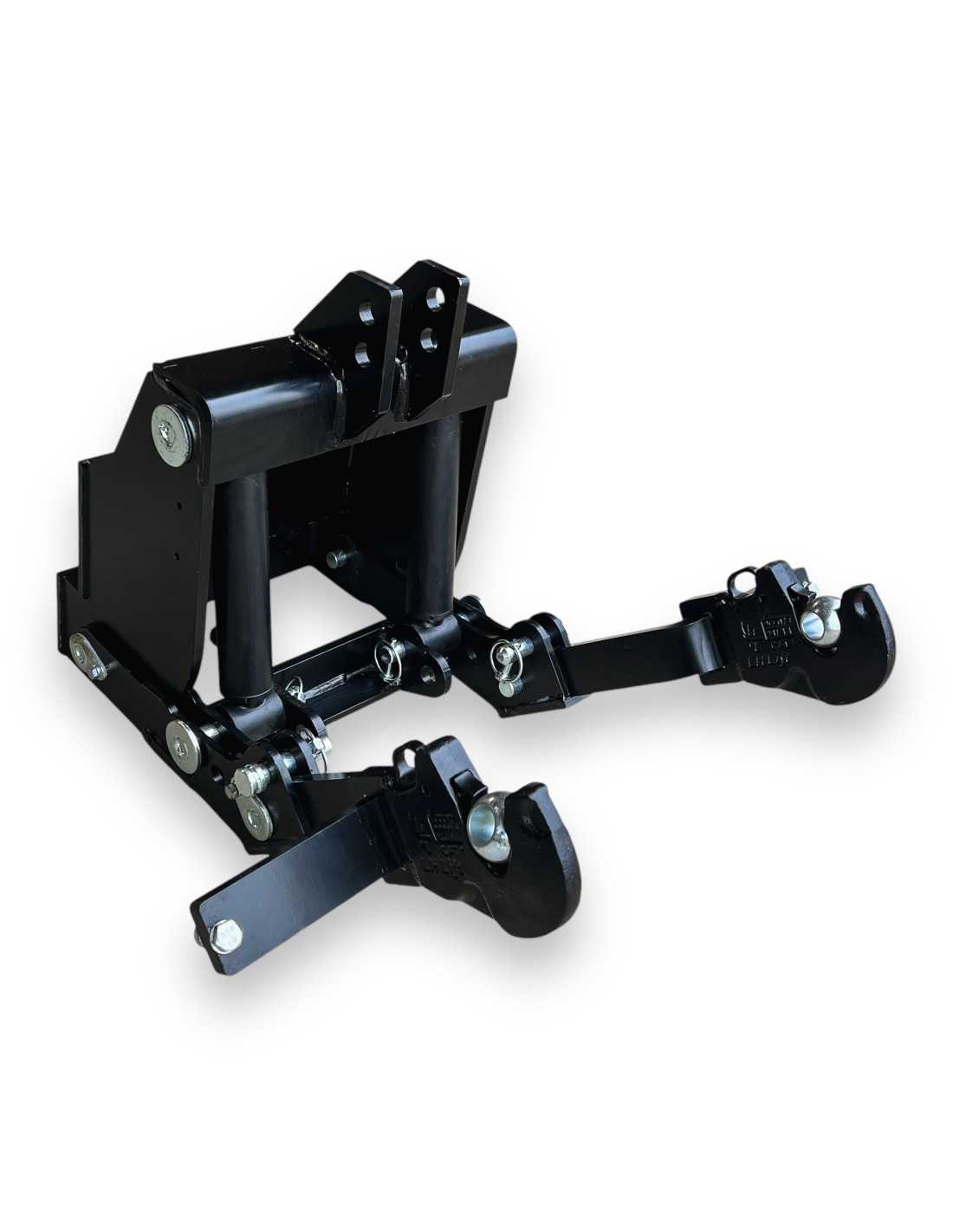

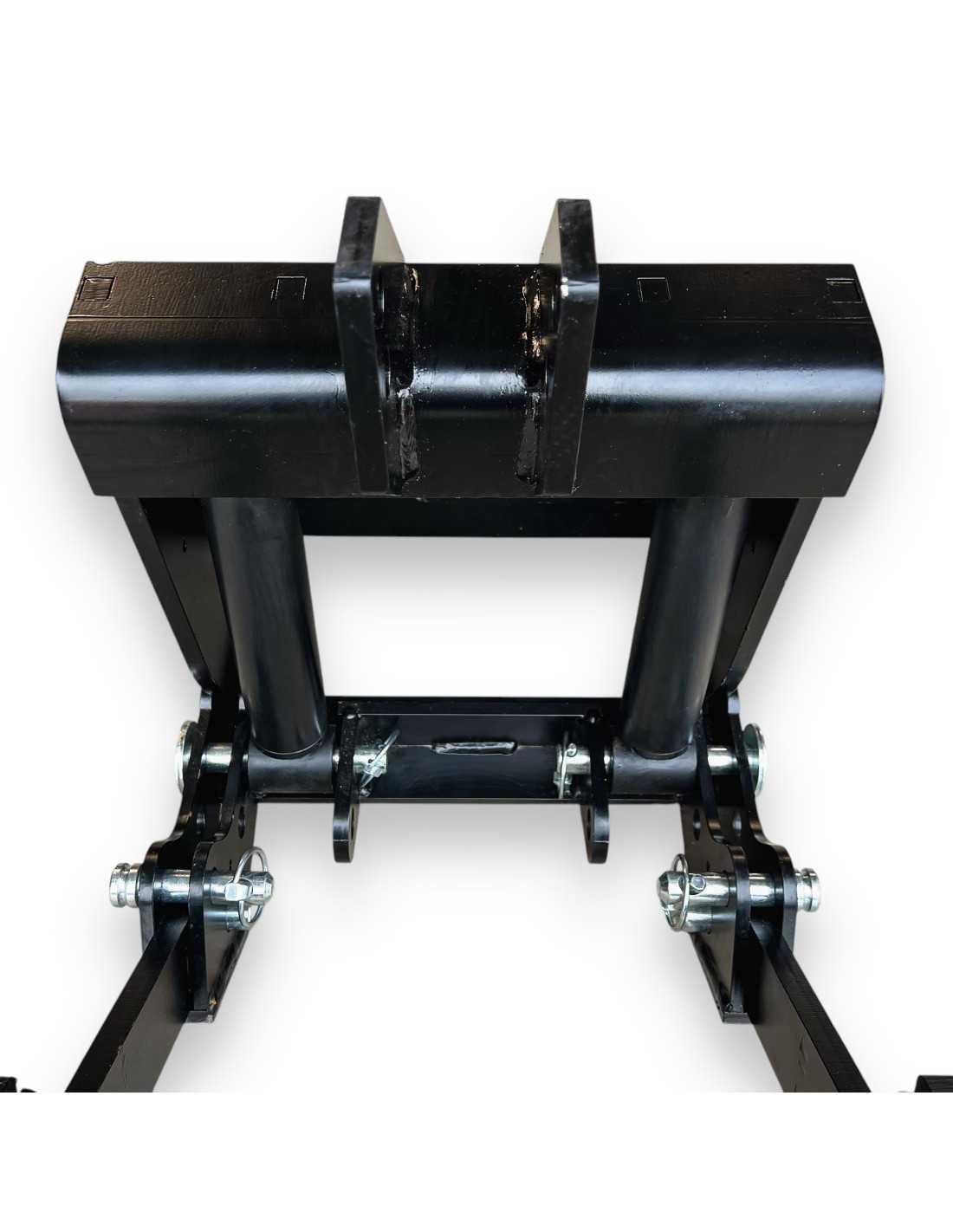

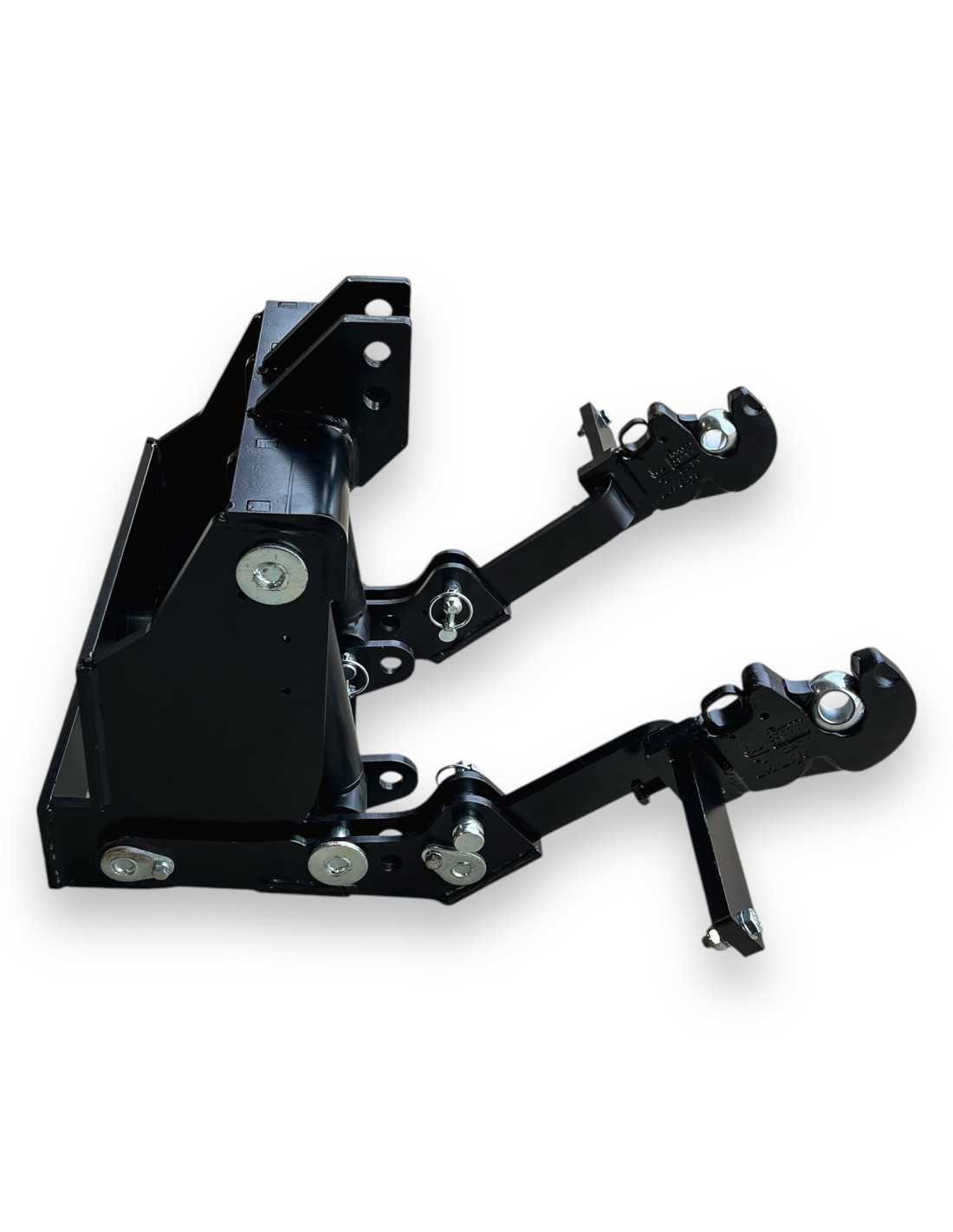

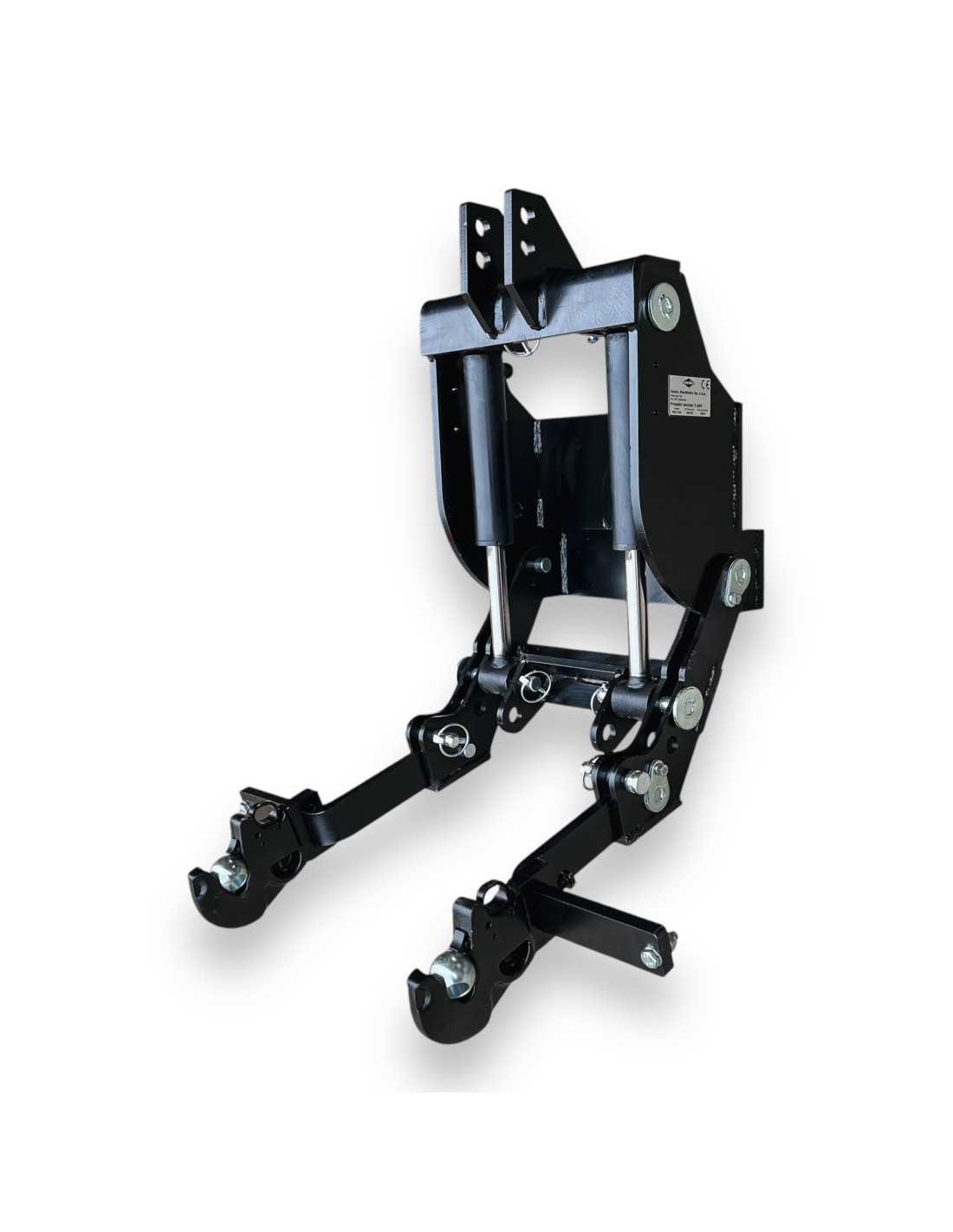

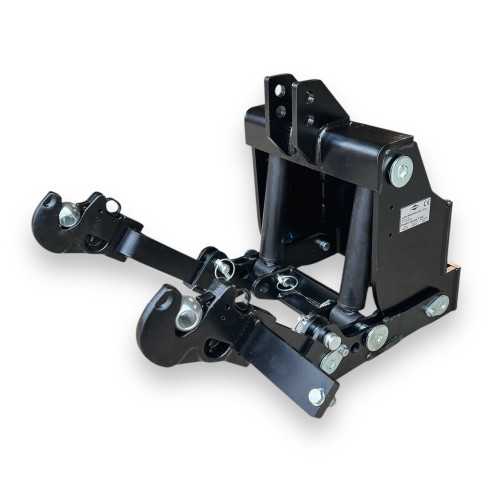

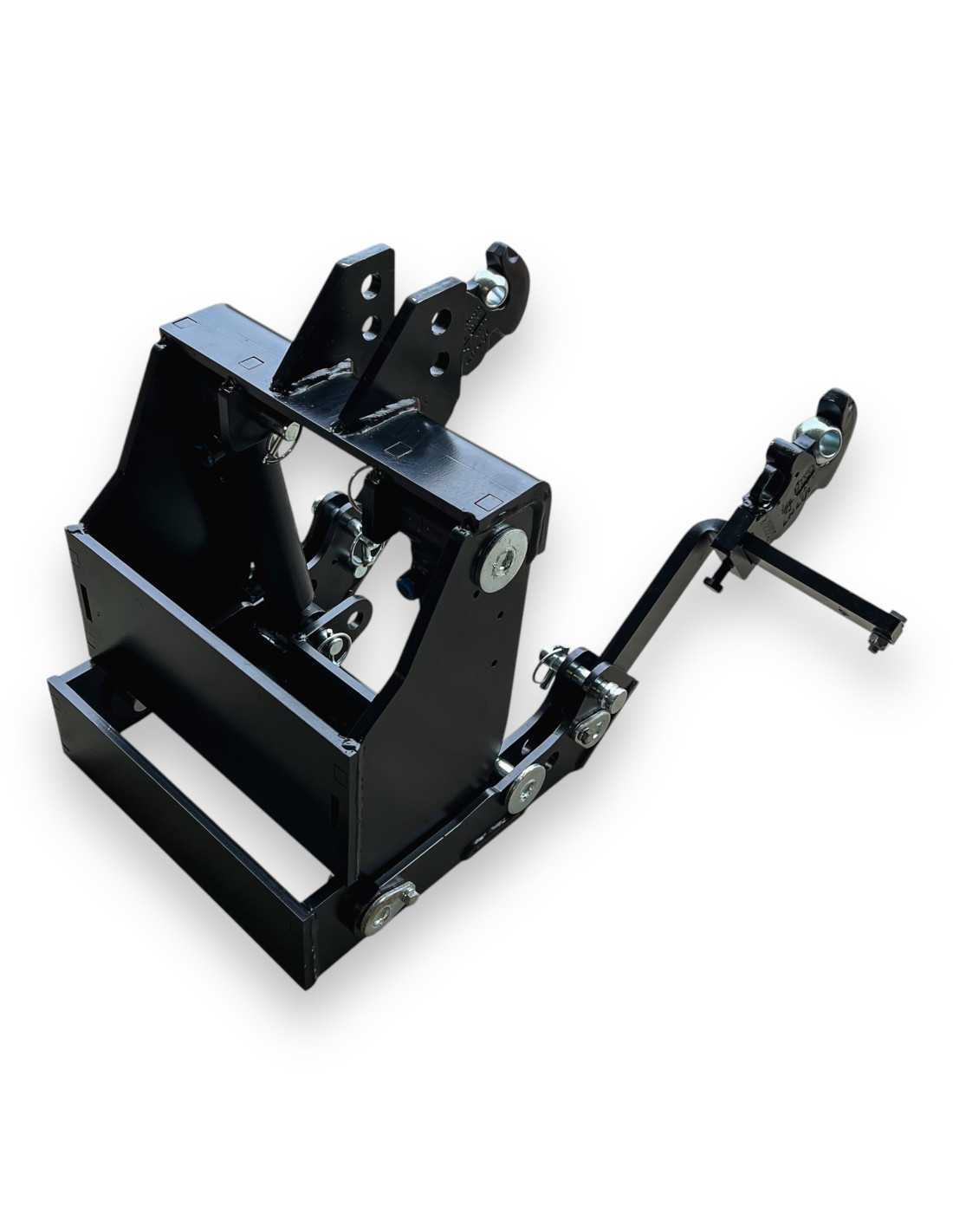

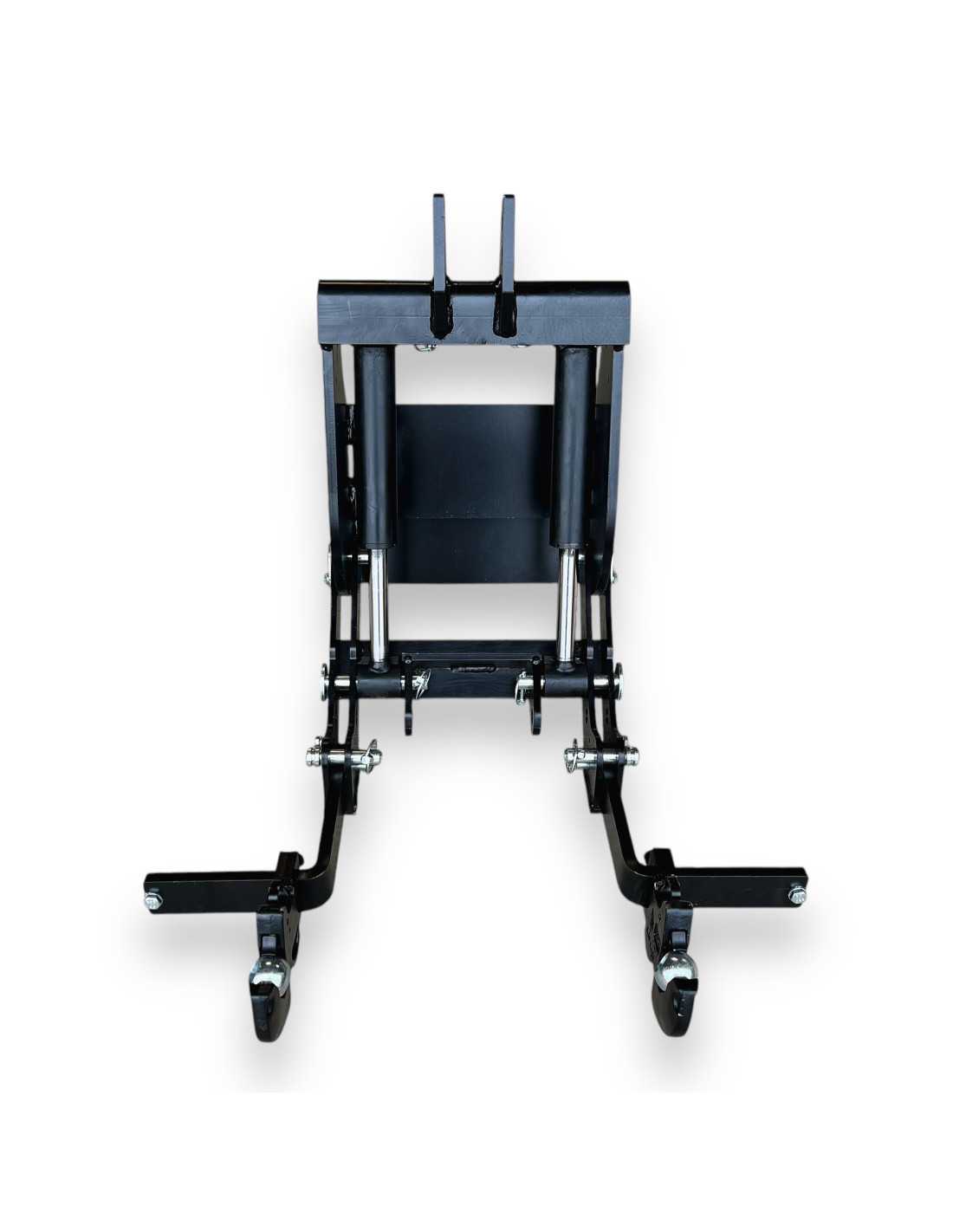

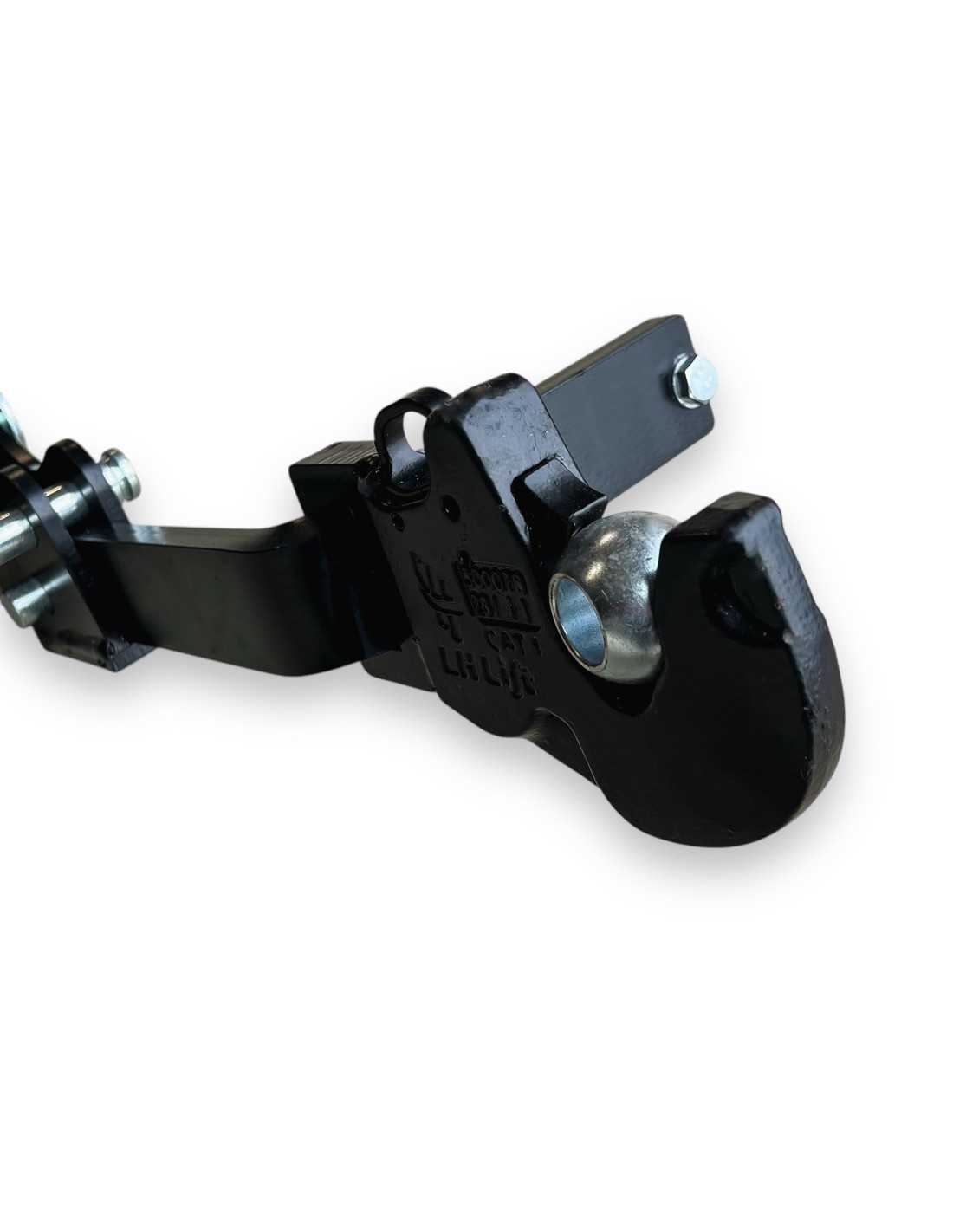

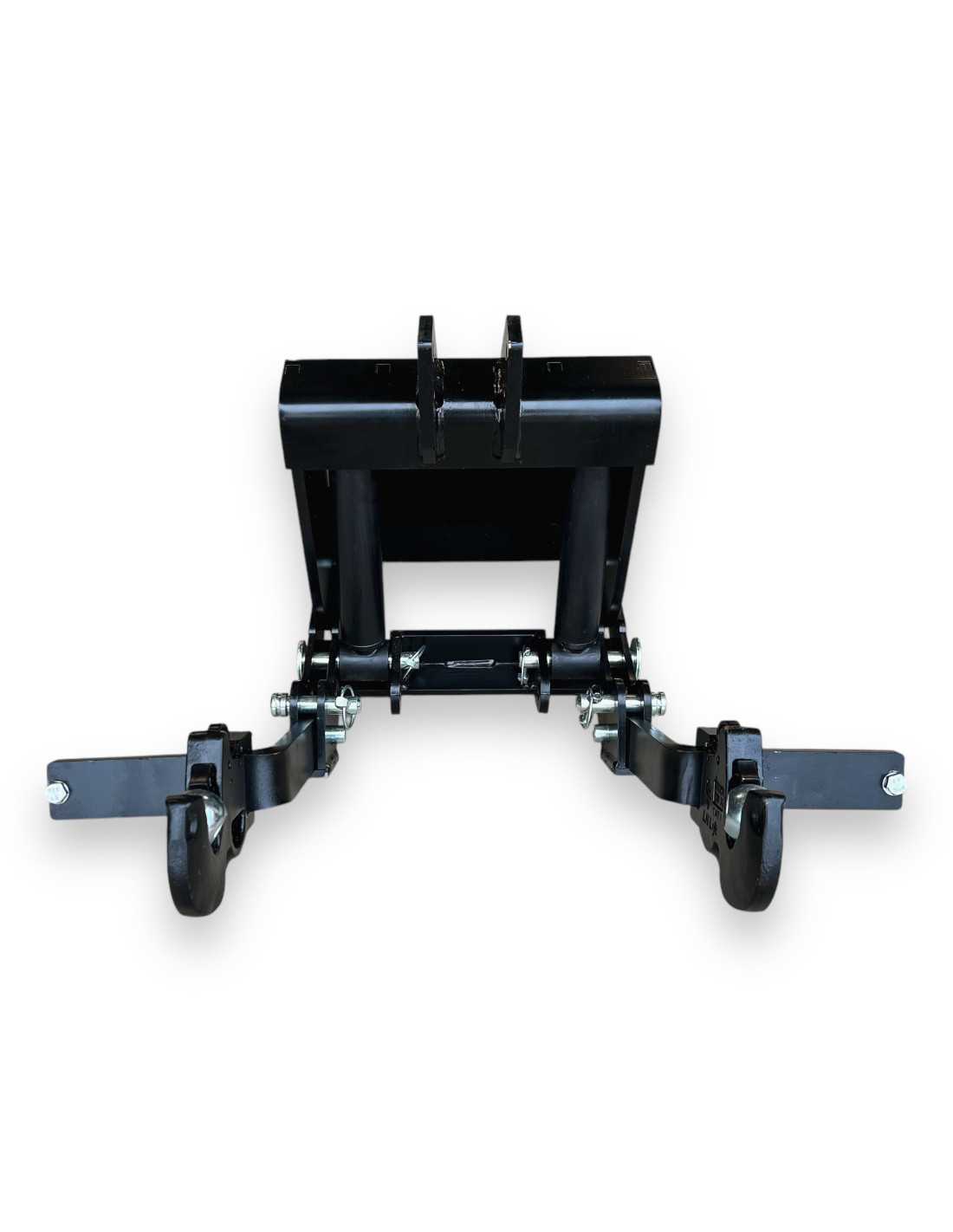

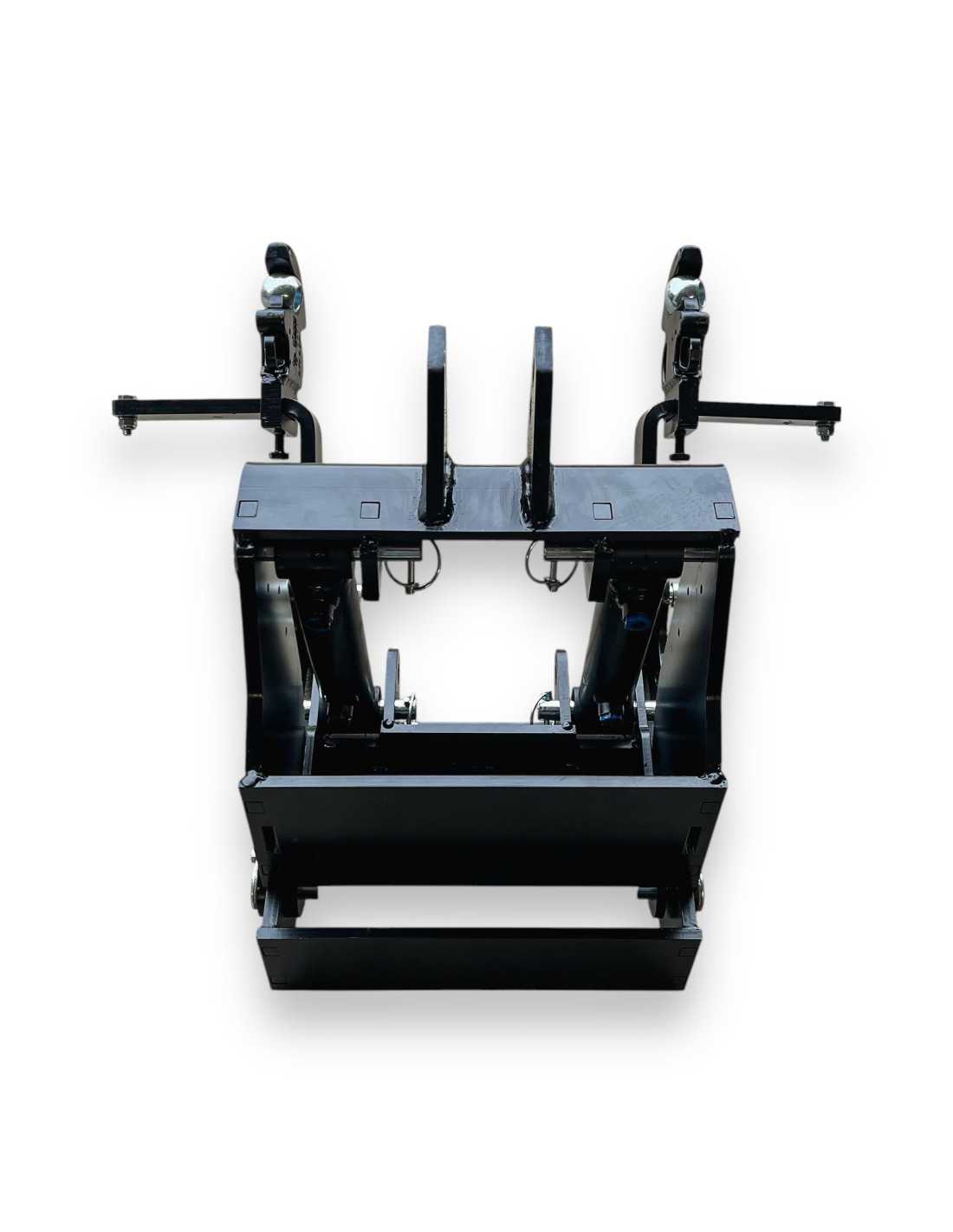

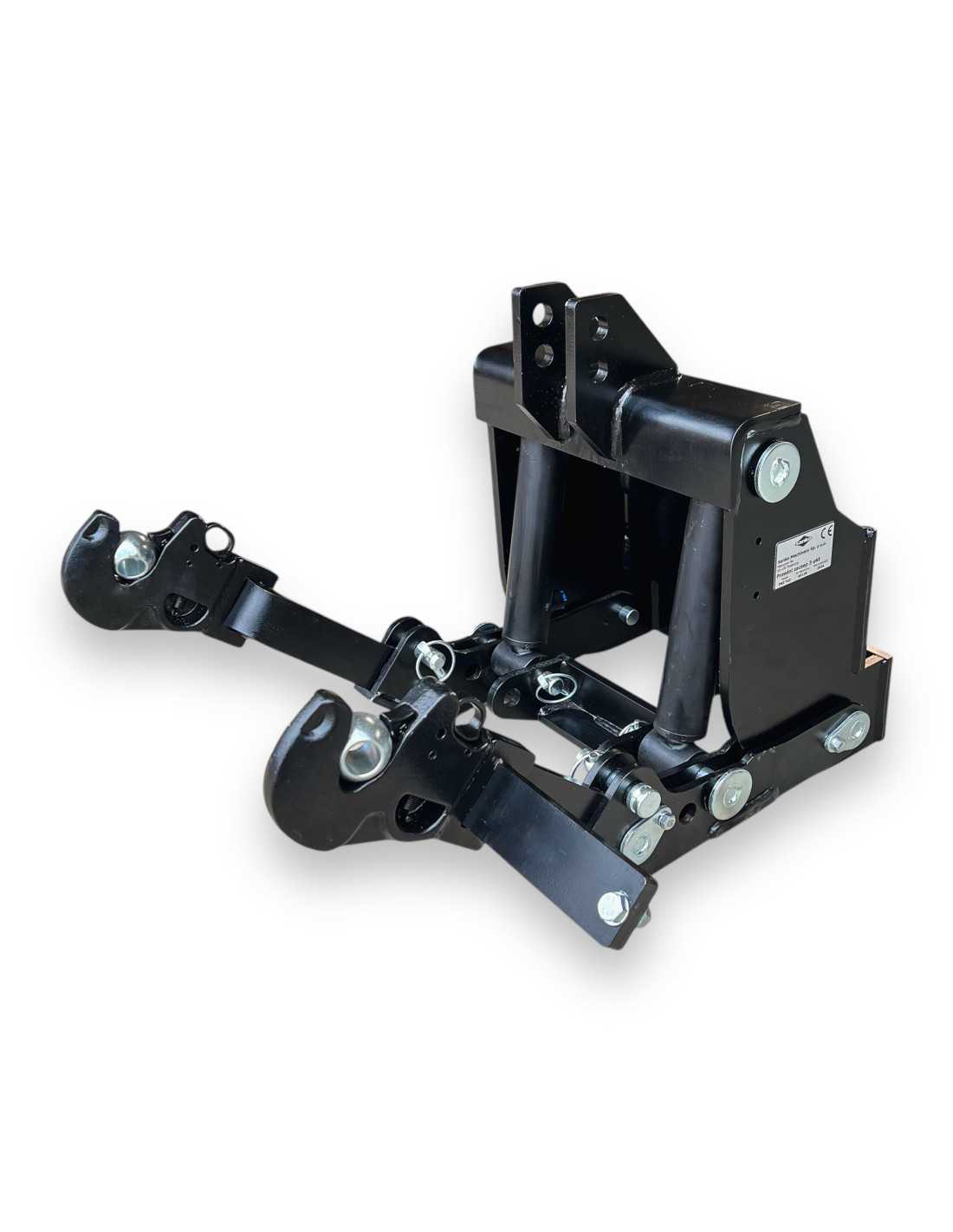

Universal front three-point linkage is a standard three-point suspension designed for attaching implements to the front of the tractor. Weighing only 55 kg, front three-point linkage is easy to install and can be adapted to most small tractors (mini tractors). Two double-acting cylinders allow precise control of the front suspension movements and stable lifting and lowering of attached implements. The lower arms are fitted with category 1 quick coupling ball joints and the distance between them is adjustable from 405 mm to 645 mm. The lower arms can also be easily folded upwards when not in use or during transport. Front three-point linkage is sold without hydraulic hoses and upper link.

28412
Last items in stock
€1,350.00
Tax included

Description

  • Suspension mounting: universal, at the front of the tractor

  • Type of coupling: three-point coupling system

  • Coupling category: 1

  • Ball couplings

  • Double acting cylinders (2 pcs)

  • Distance between lower arms (mm): min 405 / max 645

  • Lifting angle of the lower arms: 48°

  • Weight (kg): 55

  • Warranty: 12 months

  • Manufacturer: Poland
